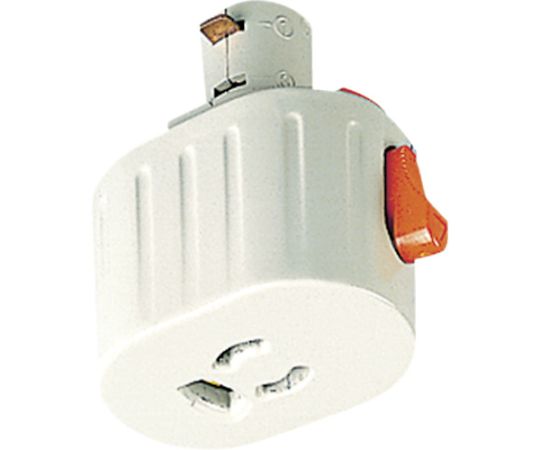

Used to extract single-phase 100V power from a 15A or 20A branch circuit.
There are L-type, which is taken from the upper conductor, and S-type, which is taken from the lower conductor. Rating: Ground 2P 15A 125V Pull-out prevention

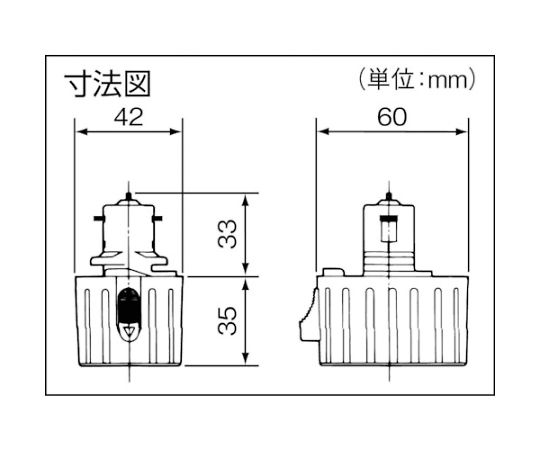

Width(mm):42
Length(mm):60
Thickness(mm):68
Type: S type
Color: Cream Gray
Note: Cannot be used with Factline 100/60.
Country of Origin: Japan
Code: 818-5380
