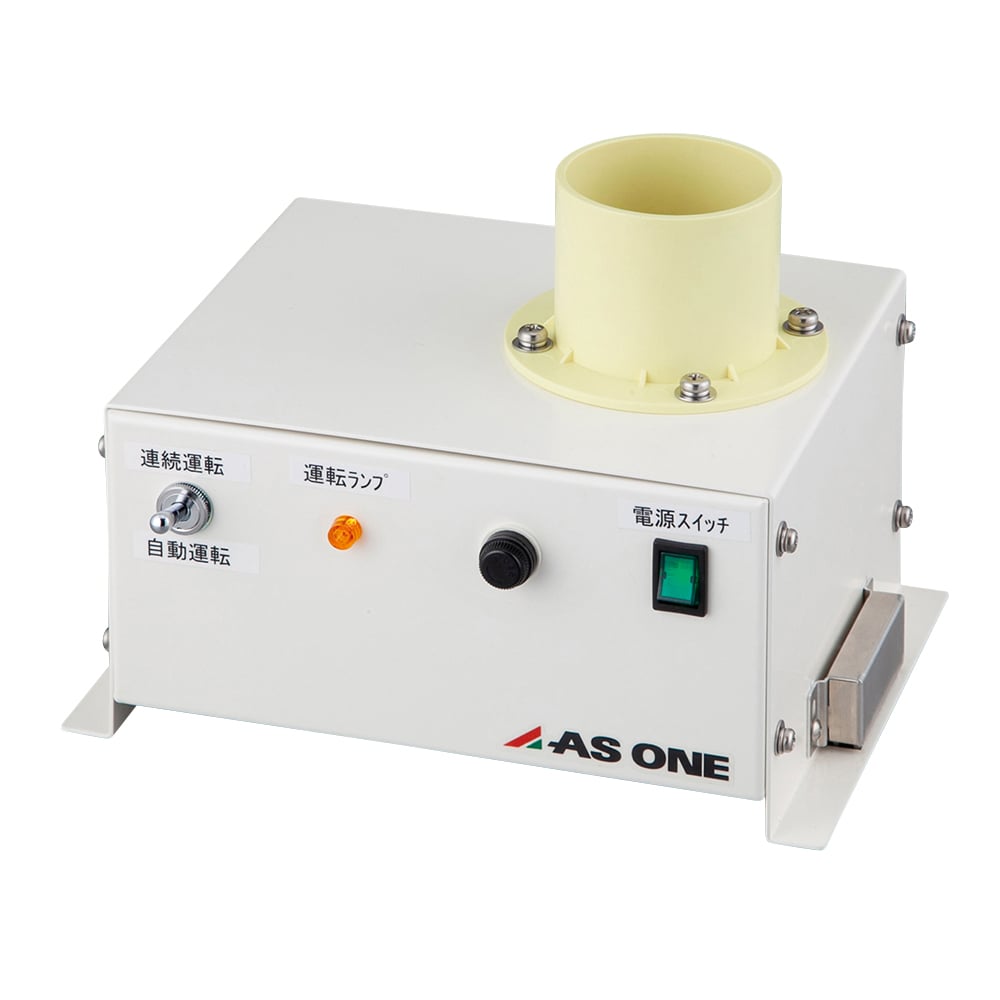

Exhaust auxiliary unit EXH-01 1 unit

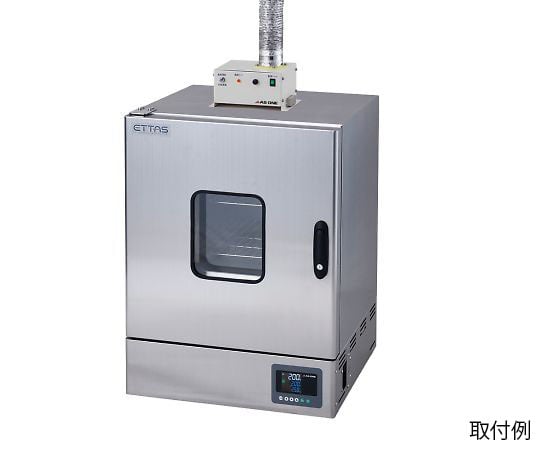

It assists exhaust from the measurement hole and promotes the discharge of steam and oily smoke from inside the chamber. By installing a duct (sold separately), it becomes easy to send exhaust air to a draft or ventilation fan. In automatic operation mode, the unit will automatically start venting when the temperature inside the unit becomes high. Duct flange diameter (mm): Φ65 Size diameter (mm): 220 x 195 x 160 Body material: Steel (painted) Airflow (50/60Hz): 0.36/0.44m3/min *Fan capacity Maximum static pressure (50/60Hz): 53/76Pa *Fan capacity Mode switching: Continuous operation/automatic operation Mounting: Magnetic adhesion Power supply: AC100V 50/60Hz 0.08A Power cable length: 2m (2P plug) *There is no function to return air to the interior of the cabinet. * Surface temperature of installation area: up to 90°C (drying device setting temperature: approximately 250°C)
