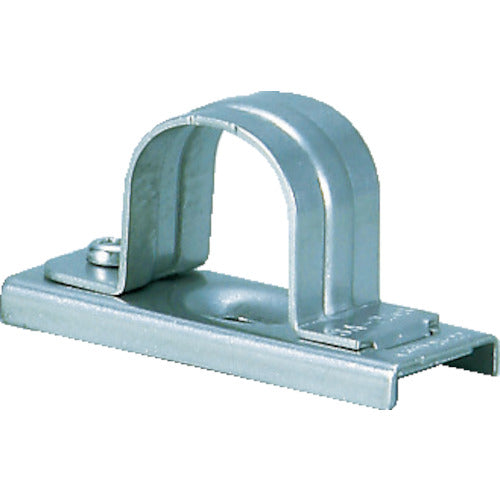

Nichido Denko Saddle Ace 25 (stainless steel) SA-25S 1 piece

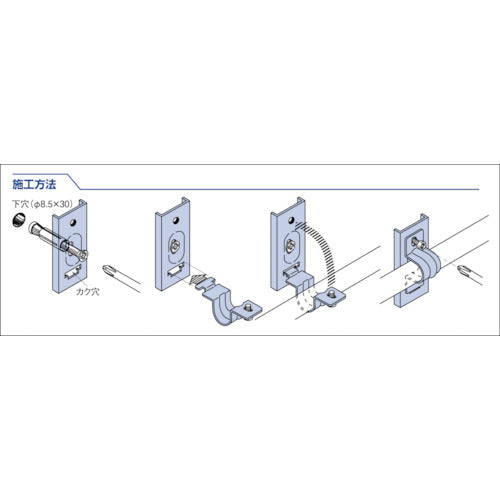

Catalogue number: SA-25S Features: ● The saddle part is hinged and fixed with one screw, and the base part is also fixed with one anchor, so the pipe can be temporarily placed when piping horizontally. Uses: ● For fixing electric conduit. Specifications: ● Nominal diameter: 25 ● Width (mm): 23 ● Length (mm): 62 ● Height (mm): 32.8 ● Mounting hole diameter (mm): 5 x 10 ● Suitable pipe diameter (mm): 25 ● Type: For thin steel ● Nominal (suitable steel electric conduit): 25 ● Diameter A (φmm): 25.7 ● Three types: iron electroplating, hot-dip galvanized, and SUS Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Plug bolt
