Nichido Denko Saddle Ace 36 (stainless steel specification) SA-36S 1 piece

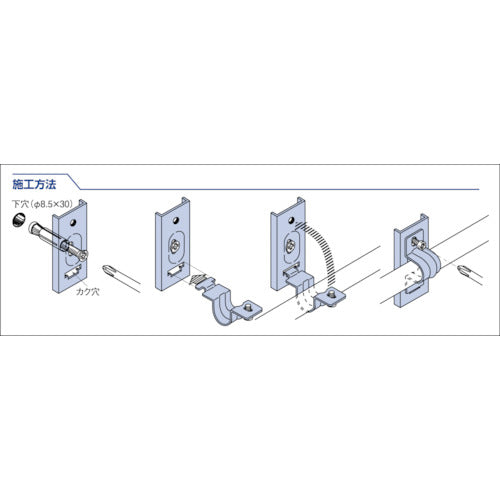

Catalogue number: SA-36S Features: ● The saddle part is hinged and fixed with one screw, and the base part is also fixed with one anchor, so the pipe can be temporarily placed when piping horizontally. Uses: ● For fixing electric conduit. Specifications: ● Nominal diameter: 36 ● Width (mm): 25 ● Length (mm): 80 ● Height (mm): 50.1 ● Mounting hole diameter (mm): 5 x 10 ● Suitable pipe diameter (mm): 36 ● Type: For thick steel ● Nominal (suitable steel electric conduit): 36 ● Diameter A (φmm): 42.5 ● Three types: iron electroplating, hot-dip galvanized, and SUS Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Plug bolt
