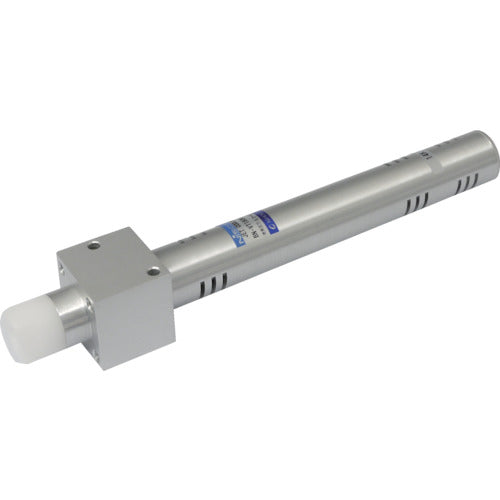

Nippon Seiki Jet Cooler 150L BN-VT150N 1 unit

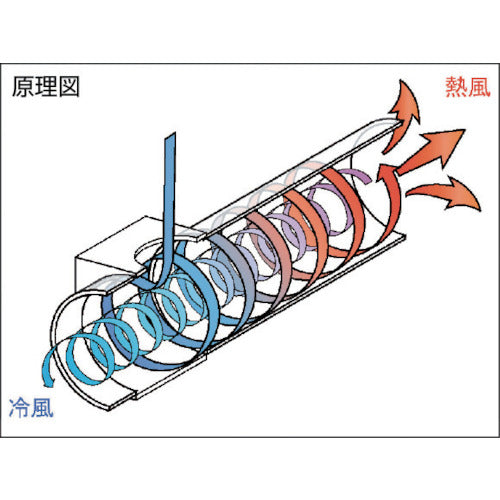

Catalog number: BN-VT150N Features: ● Simply supply compressed air to blow out a jet of cold air that is up to -60°C colder than the inlet air temperature. ● No refrigerant or electricity is used. ● Compact. ● Compressed air is rotated at high speed, separated into cold air and hot air, and this cold air can be used to easily perform spot cooling. Applications: ● For rapid cooling of solder. ● For cooling of control boxes. ● For cooling during plastic processing. ● For cooling of sewing machine needles. ● For strengthening the hardness when cutting electric wires. ● For preventing fogging of surveillance cameras. ● For cooling after spot welding. ● For cooling of resin molded products. Specifications: ●Air consumption (L/min): 170 ●Compressed air supply port: Rc1/8 ●Total length (mm): 228 ●Operating pressure (MPa): 0.2-0.7 ●Discharge port: Rc1/8 ●Compatible fluid: Compressed air ●Maximum temperature drop: -40°C Material/Finish: ●Aluminum alloy Note: ●Air consumption is the value when the operating pressure is 0.4MPa. ●Maximum temperature drop is the difference between the supply air temperature and the cold air temperature.
