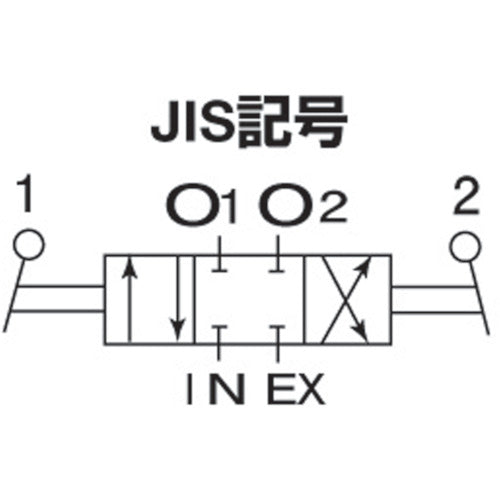

Catalog number: BN-4H41CXA-10 Features: ● A device that switches the flow direction of air supplied to air cylinders, etc. ● 3-position closed center type. ● Can be used without lubrication. Specifications: ● Effective cross-sectional area (mm2): 27 ● Connection diameter: Rc3/8 ● Number of ports: 4 ● Width (mm): 84 ● Depth (mm): 84 ● Height (mm): 107 ● Operating pressure (MPa): 0.7 ● Fluid used: Air ● Total height (mm): 107 ● Fluid temperature: 5 to 60°C ● Operating pressure: 0.7MPa ● Piping direction: Horizontal piping ● Positions: 4 directions
