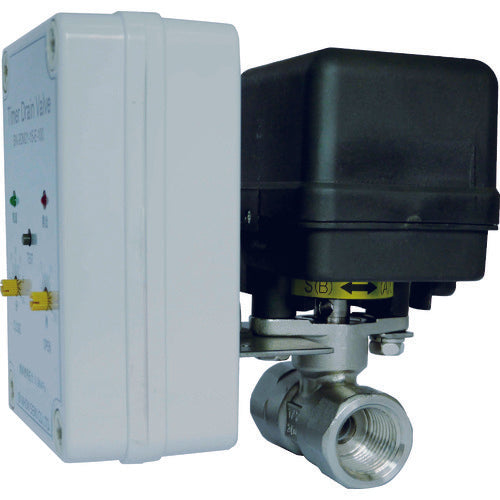

Nippon Seiki Electric Ball Valve Timer Drain Valve 15A 100V BN-9DM21-15-E-100 1 unit

Catalog number: BN-9DM21-15-E-100 Features: * Motor-driven ball valve, so malfunctions caused by foreign objects are unlikely to occur and drainage is ensured. * Uses twin timers. * Lightweight and space-saving due to the valve and timer being integrated. Applications: * Periodic drainage of drainage from compressed air piping. Specifications: ● Operating pressure (MPa): 0 to 0.98 ● Drain discharge volume (cm3/time): Maximum 7500 ● Connection diameter: Rc1/2 ● Width (mm): 120 ● Depth (mm): 121 ● Height (mm): 118 ● Power supply (V): Single phase 100 ● Body ambient temperature range (℃): 0 to 50 ● Drain water temperature range (℃): 0 to 50 ● Operating pressure range (MPa): 0 to 0.98 ● Valve opening and closing time setting: Closing time 1 to 60 minutes, opening time 5 to 20 seconds ● Operating ambient temperature: 0 to 50℃ ● Fluid used: Air, drain Material/Finish: ● Valve: Stainless steel (SUS304)
