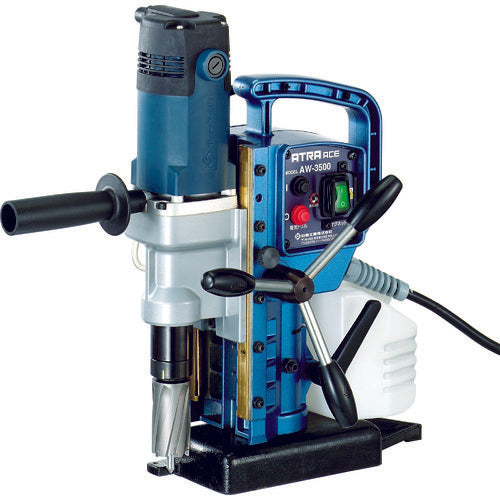

Nitto Atraace AW-3500 1 unit
Nitto Atraace AW-3500 1 unit
Regular price
¥364,848
Regular price
Sale price
¥364,848
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: AW-3500 Features: * Dual-purpose type that can be fitted with a jet broach and twist drill. * Equipped with a pump that automatically supplies cutting fluid. * The motor load status is displayed by the color of the LED. * If overloaded, the motor will automatically stop to protect it. Specifications: ●Maximum drilling capacity (mm): 35 ●Maximum plate thickness (mm): 50 ●Stroke (mm): 130 ●Power supply (V): Single phase 100 ●Power cord length (m): 5 ●Magnet dimensions (mm): 99 x 177 ●No-load speed (min-1): 870 ●Maximum magnetic force (N): 9000 ●Drilling capacity (mm): 14-35 ●Power consumption (W): 950 ●Rated current (A): 10 ●Height (mm): 361 ●Total length (mm): 318 ●Power cord length: 5m ●Maximum diameter of twist drill: 13mm ●Jet broach included Set contents/accessories: ●Jet broach φ22 x 35L ●Pilot pin A2 ●Hexagonal wrench ●Wrench ●Cutting oil ●Tool box ●Belt lashing
