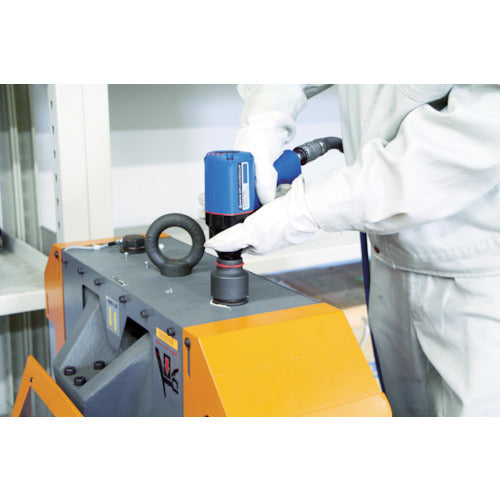

Nitto Air Impact Wrench AIS-1230 (89344) AIS-1230 1 unit

Catalog number: AIS-1230 Features: ● Camless twin hammer and air motor with exhaust brake function provide high torque and excellent controllability. Applications: ● For tightening bolts. Specifications: ● Capacity bolt diameter (mm): 12 ● Socket drive size (mm): 9.5 ● Maximum tightening torque (N・m): 190-240 ● No-load speed (min［［の−１］］): 11000 ● Air consumption (［［Ｍ３］］/min): 0.8 ● Hose attachment port: NPT1/4 ● Exhaust: Rear ● Overall length (mm): 153 ● Hammer type: Double hammer ● Operating air pressure (MPa): 0.6 ● No-load speed (rpm): 11000 ● Operating air pressure: 0.6MPa Set contents/Accessories: ● Coupler 20PM-NPT with eight seal: 1 piece (AIS-2560 is with 30PM-NPT eight seal) Note: ● Tightening torque is an approximate value. Torque value will change depending on conditions.
