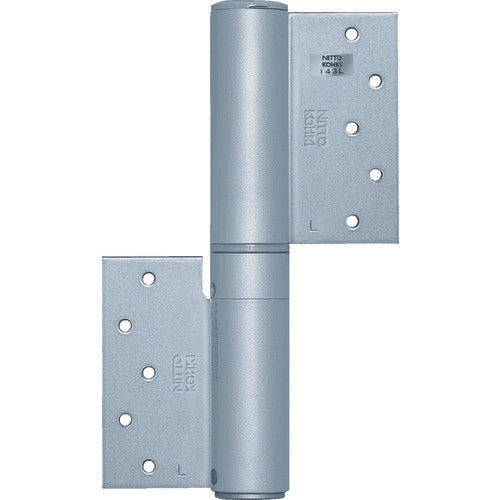

Nitto Auto Hinge Hinge Type 143L-T 1 S

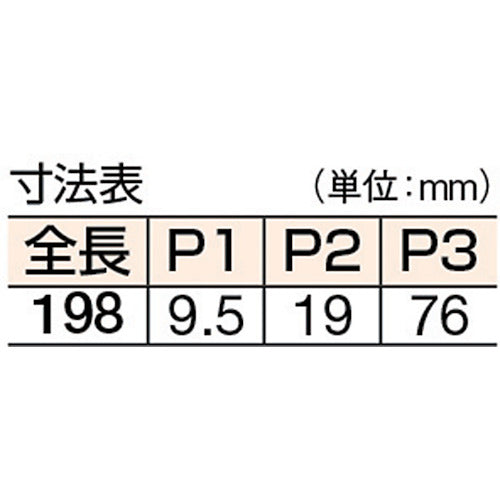

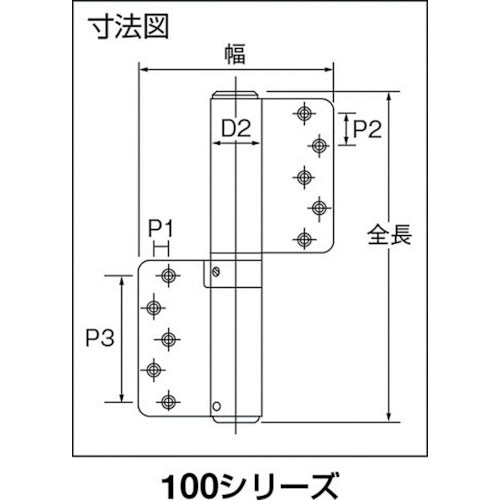

Catalog number: 143L-T Features: ● The adoption of two strong and weak springs and their unique switching mechanism ensures that the door closes completely while still allowing it to be opened easily. (Excluding 140 and 240 types) ● The frame side blade and the door side blade are of the flag hinge type that can be separated, so you can choose to install them on-site or at the factory. Applications: ● Suitable for indoor use. Specifications: ● Total length (mm): 198 ● Width (mm): 120 ● Thickness (mm): 4 ● Number of screw holes: 10 ● Opening: Left-handed ● D2 (mm): 32 ● Surface treatment: Melamine baked paint finish ● Installation method: Flat head screw (M6, sold separately) ● JIS A1510-3 standard product ● Applicable door weight: 60 kg or less ● Applicable door dimensions: (Width) 900 mm x (Height) 2100 mm x (Thickness) 30 mm or less Material/Finish: ● Steel Set contents/Accessories: ● Top and bottom x 1 each
