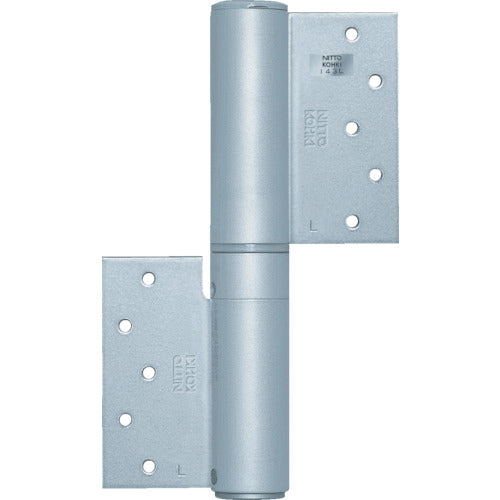

Nitto Auto Hinge Hinge Type 143SR-T 1 S

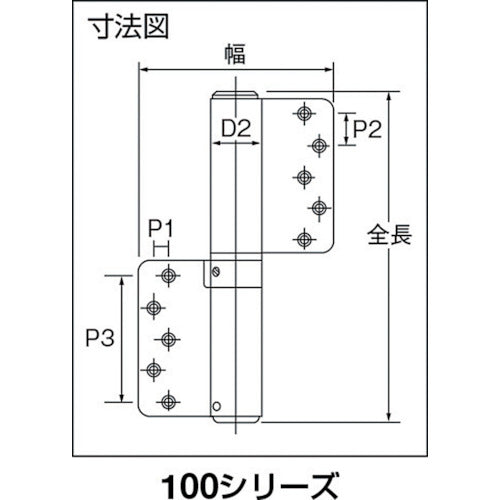

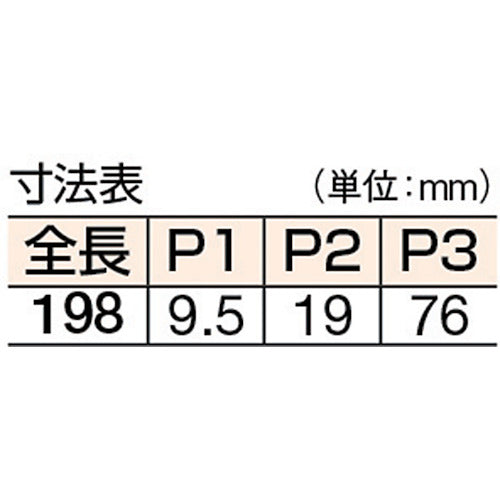

Catalog number: 143SR-T Features: * The use of two strong and weak springs and their unique switching mechanism ensures that the door closes completely while still allowing it to be opened easily. * The frame side and door side blades are of the flag hinge type, which can be separated, so you can choose to install them on-site or at the factory. * It can also be used on arch doors and doors without upper linings, where it is difficult to use other door closers. * Products with a built-in stop mechanism can reliably pause the door at 85° and 150° positions, making them ideal for unloading work and indoor ventilation. Applications: * For indoor use. Specifications: ● Total length (mm): 198 ● Width (mm): 120 ● Thickness (mm): 4 ● Number of screw holes: 10 ● Opening: Right-hand ● D2 (mm): 32 ● Type: Indoor steel door with stop ● Surface treatment: Melamine baked paint finish ● Installation method: Flat head screw (M6, sold separately) ● Pause position: 85°/150° ● With stop mechanism ● JIS A1510-3 standard product ● Applicable door weight: 60kg or less ● Applicable door dimensions: (width) 900mm x (height) 2100mm x (thickness) 30mm or less Material/Finish: ● Steel Set contents/Accessories: ● Top and bottom x 1 each
