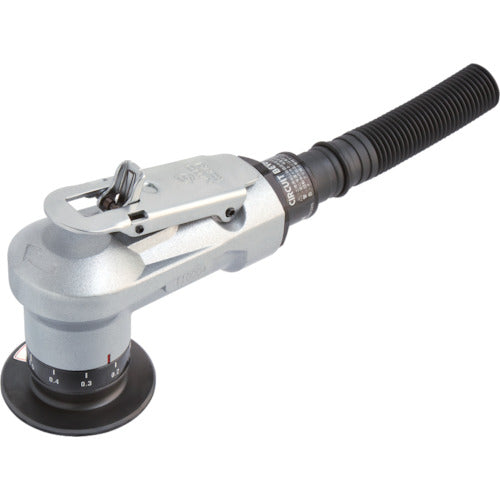

Nitto Circuit Beveler (Pneumatic) CB-01 CB-01 1 unit

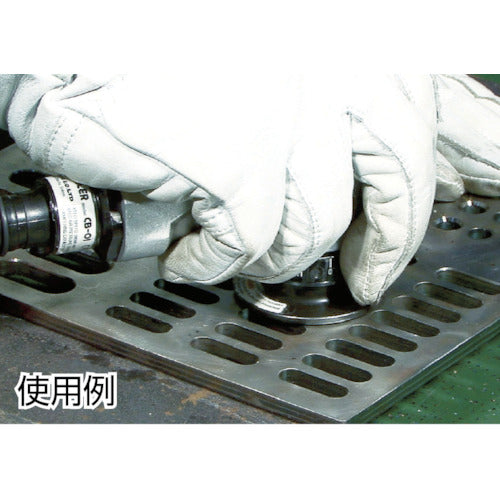

Catalog number: CB-01 Features: ● Capable of chamfering 6.8 mm pilot holes for M8 screws. ● Small and lightweight type. ● Uses a throw-away tip (can be used on 3 sides) that achieves a smooth finished surface. Applications: ● For chamfering work. Specifications: ● No-load speed (min-1): 28000 ● Air consumption (m3/min): 0.15 ● Chamfering capacity: mild steel 0-1C, stainless steel 0-0.5C ● Chamfering angle (°): 45 ● Hose mounting port: High coupler 20PM ● Overall length (mm): 86 ● No-load speed (rpm): 28000 ● Operating air pressure: 0.6MPa ● Minimum plate pressure (mm): 1.5 (maximum chamfering amount 0.5C at 1.5mm) ● Minimum corner radius (mm): 3R ● Minimum machining diameter (mm): 6.8 ● Minimum chamfering depth (mm): 6 Set contents/accessories: ● Tip (8.4 triangle) x 2
