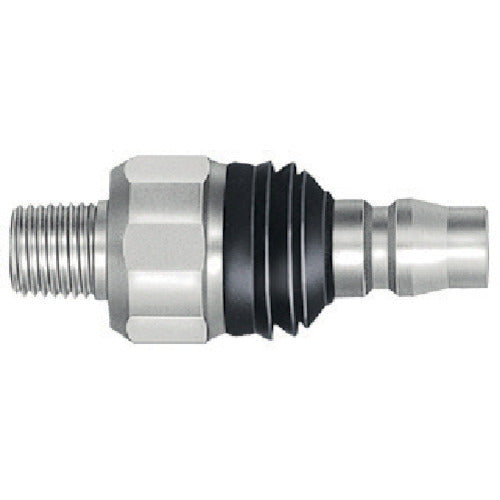

Nitto Twist Plug (71712) TS-10PM STEEL NBR 1 piece

Catalog number: TS-10PM STEEL NBR Features: ● Swing plug for connecting hoses to pneumatic tools and equipment. ● The angle at the handle can be freely adjusted (70° bending range), so tools can be used easily even in narrow spaces or when working upwards. ● Swing plug for connecting hoses to pneumatic tools and equipment. ● The angle at the handle can be freely adjusted (70° bending range), so tools can be used easily even in narrow spaces or when working upwards. ● The bending part is reinforced with lubricating resin, so the bending action is smooth and it has excellent durability. ● Comes with a dust cover to prevent dirt and chips from entering. Specifications: ● Pressure resistance (MPa): 1.5 ● Counterpart mounting size: Rc1/8 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -20 to 60 ● Counterpart mounting screw size: Rc 1/8 ● Valve structure: One-way opening and closing type ● Eliminates hose twisting, kinking, and bending. ● Greatly improves workability. Material/Finish: Body: Steel (nickel plated) Sealing rubber: Nitrile rubber (NBR)
