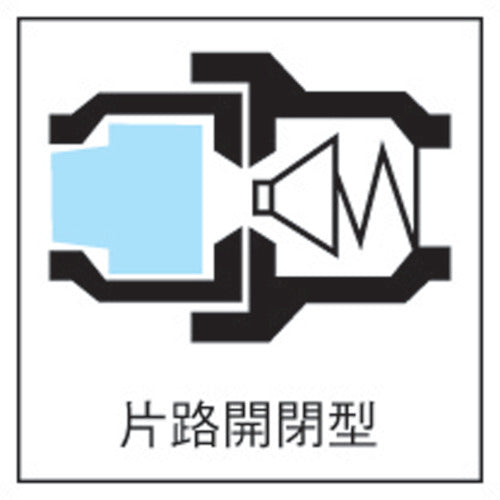

Catalog number: HA-20SM Features: ● Pressure resistance equivalent to that of metal products. ● Built-in "automatic locking function" to prevent accidental detachment. ● Lightweight at only 1/4 of the weight of metal products, making it easy to handle. ● Suitable for a wide range of fluids, including not only air but also water. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating installation size: Rc1/4 ● Fluid used: air, water ● Compatible plug: Nitto Kohki High Coupler Series ● Operating temperature range: -20 to 60°C ● Maximum operating pressure: 1.5MPa ● One-way opening and closing type Materials/Finish: ● Body: Engineering plastic (PBT, POM) ● Sealing rubber: Nitrile rubber (NBR)
