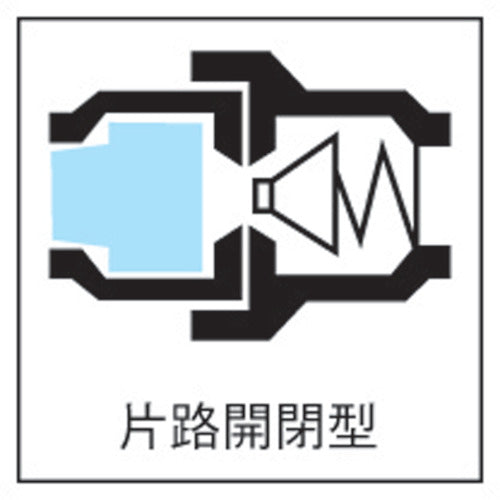

Catalog number: HA-T Features: ● Pressure resistance equivalent to that of metal products. ● Built-in "automatic locking function" to prevent accidental disconnection. ● One-touch connection by simply pushing in the socket. ● Lightweight at only 1/4 of the weight of metal products, making it easy to handle. ● Suitable for a wide range of fluids, including not only air but also water. Specifications: ● Pressure resistance (MPa): 1.5 ● Number of branches: 2 ● Compatible plug: Nitto Kohki High Coupler Series ● Fluid used: Air, water ● Operating temperature range: -20 to 60°C ● Maximum operating pressure: 1.0MPa ● One-way opening and closing type ● Remarks: For 2-branch piping Materials/Finish: ● Body: Engineering plastic (PBT, POM) ● Sealing rubber: Nitrile rubber (NBR)
