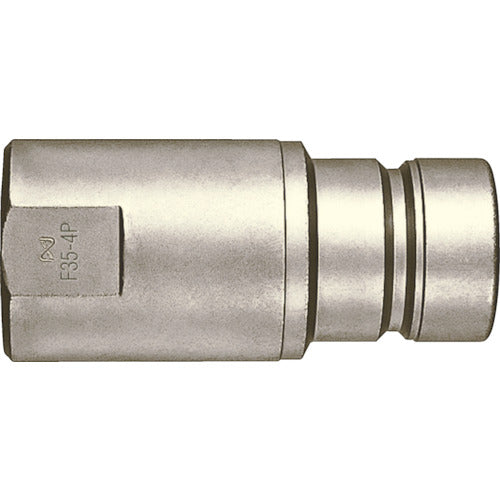

Nitto Flat Face Coupler F35 Type for High Pressure Piping F358P (17912) F35-8P STEEL FKM 1 pc

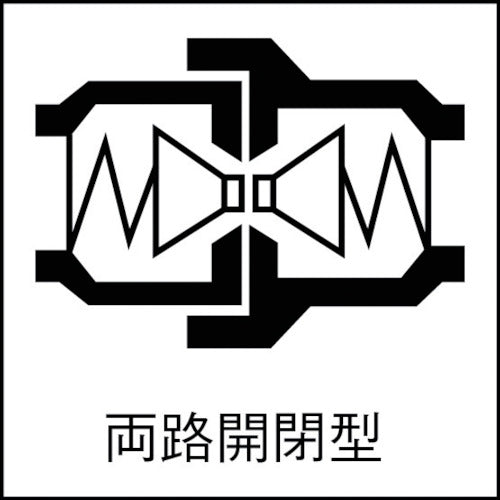

Catalog number: F35-8P STEEL FKM Features: ●Flat connection surface prevents dust. ●Liquid dripping when coupler is separated is reduced to less than half of conventional levels. ●The unique flat connection surface structure reduces "liquid dripping" when "coupler" is separated. ●Reduces air mixing during connection, minimizing the impact on equipment. ●Easy dust disposal of foreign matter and dust. ●One-touch connection of plug and socket by simply pushing. ●Built-in separation prevention mechanism prevents separation due to vibration or impact during connection. ●Structure keeps pressure loss low, making it suitable for hydraulic applications that require high flow rates. In addition, both socket and plug have built-in automatic opening and closing valves to prevent fluid leakage during separation. Specifications: ● Pressure resistance (MPa): 52.5 ● Fluid used: Hydraulic oil ● Operating temperature range (℃): -20 to 180 ● Maximum operating pressure (MPa): 35.0 ● Counterpart mounting size: R1 ● Counterpart mounting screw size: R 1 ● Two-way opening and closing type ● Valve structure: Two-way opening and closing type (reduced dripping type) ● Flat connection surface for dust prevention. ● Reduced dripping when the coupler is separated. Material/Finish: ● Body: Special steel (nickel plated) ● Sealing rubber: Fluorine rubber (FKM)
