Nitto Full Broker Coupler FBH30SF (23547) FBH-30SF AL NBR 1 piece

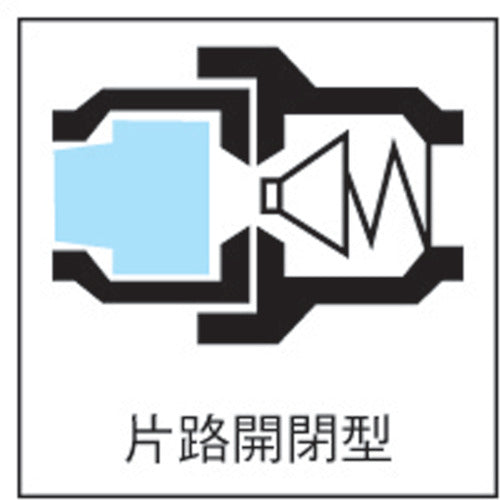

Catalog number: FBH-30SF AL NBR Features: ● The valve is the first in the industry to open all the way, achieving low pressure loss and large flow rate. ● Connection with the plug can be performed with the internal pressure at 0. ● When the valve is closed during disconnection, the residual pressure on the plug side is exhausted, eliminating recoil and unpleasant noise. ● Achieves low pressure loss and large flow rate. Compared to the "Hi Coupler", the flow rate is increased by up to approximately 40%. ● When connecting and disconnecting, the valve is closed, allowing smooth operation with zero internal pressure. ● When disconnecting, the residual pressure on the plug side is exhausted, eliminating unpleasant noise and recoil. ● Equipped with a separation prevention mechanism to prevent accidental separation. ● The valve can be opened and closed while connected. ● 30 to 45% lighter than the conventional "Hi Coupler". ● A type with a hose is also available. Specifications: ● Pressure resistance (MPa): 2.0 ● Counterpart mounting size: R3/8 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 180 ● Counterpart mounting screw size: R 3/8 ● One-way opening and closing type ● For male thread installation ● Compatible fittings: Nitto Kohki high coupler type ● Valve structure: One-way opening and closing type ● Achieves low pressure loss and large flow rate with a unique valve mechanism. ● Energy-saving "coupler" that allows the reduction of the compressor's source pressure. Material/Finish: ● Body: Aluminum alloy ● Sealing rubber: Nitrile rubber (NBR) Caution: ● Avoid direct connection to impact tools or vibration tools.
