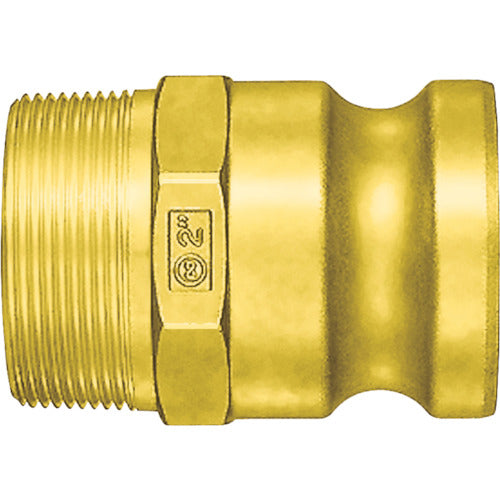

Nitto Lever Lock Coupler (for female thread installation) Mating installation size: Rc1 1/4 inch (79825) LF-10TPM-BR 1 piece

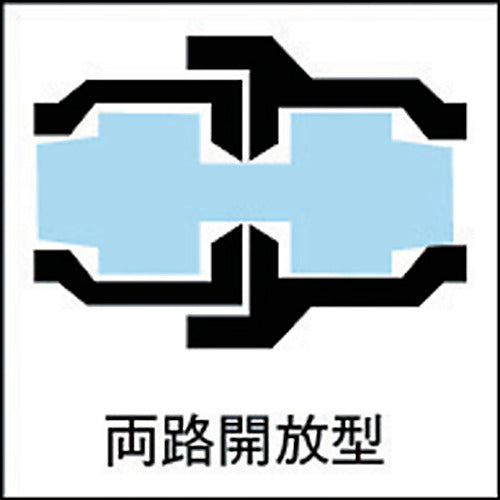

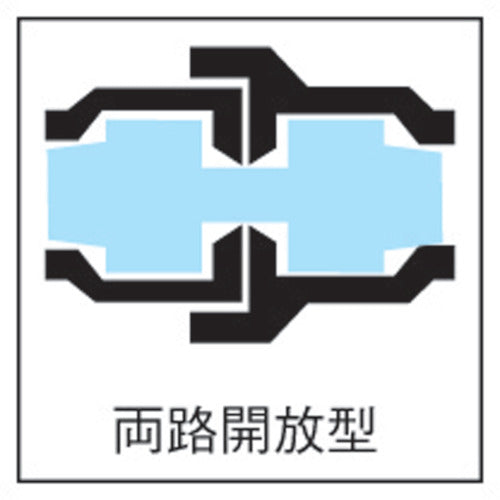

Catalog number: LF-10TPM-BR Features: ● Connect (lock) and disconnect fluid piping with a light lever operation, and adapt to various fluid transport needs such as liquid, gas, and powder. ● Connection dimensions comply with US military standard AA-59326. ● Can be widely used to transport liquid, gas, and powder. ● End face seal structure with few irregularities on the inner surface, realizing smooth fluid transport. ● "Special lip packing" is used (excluding nominal size 3/4 and 1, silicone rubber, and FEP coated rubber) to reduce lever operation load. ● Can be connected to products whose connection dimensions comply with US military standard A-A-59326 (MIL-C-27487). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications. ● Stopper function further improves safety. (Made to order / Metal only) Specifications: ● Pressure resistance (MPa): 2.7 ● Fluids used: Water, hydraulic oil, air, powder ● Maximum operating pressure (MPa): 1.8 ● Mounting size: R1 1/4 ● Compatible coupler: Lever lock coupler ● Counterpart mounting size (inch): Rc1 1/4 ● Counterpart mounting screw size: Rc 1 1/4 ● Operating temperature range: -20 to 80°C ● Maximum operating pressure: 1.8MPa ● Two-way open type ● Compatible fittings: Nitto Kohki lever lock type ● Valve structure: Two-way open type ● Transports liquids, gases, and powders with a light lever operation. ● A wide variety of body materials, sizes, and mounting shapes. Material/Finish: ● Body: Copper alloy Note: ● Please note that some appearances, dimensions, and mass may differ due to product improvements.
