Nitto Lock Coupler 200 (Socket) (78581) L200-40SH STEEL NBR 1 piece

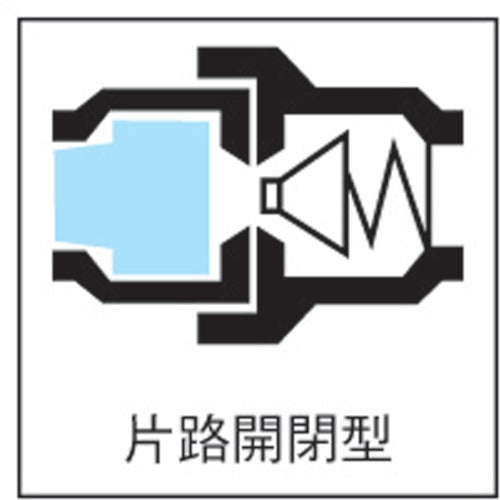

Catalog number: L200-40SH STEEL NBR Features: * Locking mechanism prevents accidental disconnection after connection. * One-touch connection. * Separation prevention mechanism prevents accidental disconnection after connection. * Suitable as an intermediate joint when extending hoses. * Plug and socket can be connected with one touch by simply pushing. * Uses a ball bearing swivel mechanism to prevent hose twisting. (SNRG type) * To attach the hose, simply insert it into the nipple and tighten the nut. (SNRG type) * Comes standard with a spring nut to prevent hose bending. (SNRG type) * Uses a valve structure with little pressure loss to increase flow rate. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (inch): 1/2 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 180 ● Compatible coupler: Nitto Kohki High Coupler Series ● One-way opening and closing type ● Valve structure: One-way opening and closing type ● Smooth piping with one touch. ● Built-in safety device separation prevention mechanism. Material / Finish: ● Body: Steel (chrome plated) ● Sealing rubber: Nitrile rubber (NBR)
