Nitto 700R Coupler for High Pressure (00998) (CA96077) 700R-3S STEEL NBR 1 pc

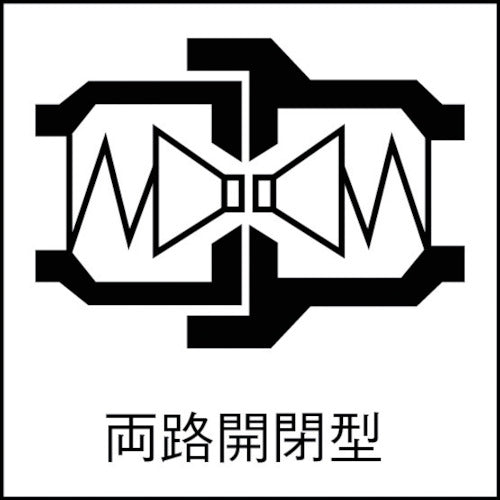

Catalog number: 700R-3S STEEL NBR Features: ●High-pressure coupler with a maximum operating pressure of 68.6 MPa and a pressure resistance of 98 MPa. ●The valve is a metal touch type that does not use rubber. ●Maximum operating pressure of 68.6 MPa (700 kgf/cm2). A high-pressure "coupler" with a pressure resistance of 98 MPa (1,000 kgf/cm2). ●The valve is a metal touch type that does not use rubber. It has excellent durability. ●Both the plug and socket have built-in automatic opening and closing valves with a metal touch type that prevent fluid from leaking out when separated. ●Dip molding cap is standard equipment. Specifications: ● Pressure resistance (MPa): 98.0 ● Counterpart mounting size: R3/8 ● Fluid used: Hydraulic oil ● Maximum operating pressure (MPa): 68.6 ● Operating temperature range (℃): -20 to 80 ● Counterpart mounting screw size: R 3/8 ● Two-way opening and closing type ● Valve structure: Two-way opening and closing type ● High-pressure "coupler" with a maximum operating pressure of 68.6 MPa and a pressure resistance of 98 MPa. Material/Finish: ● Body: Special steel (nickel plated) ● Sealing rubber: Nitrile rubber (NBR)
