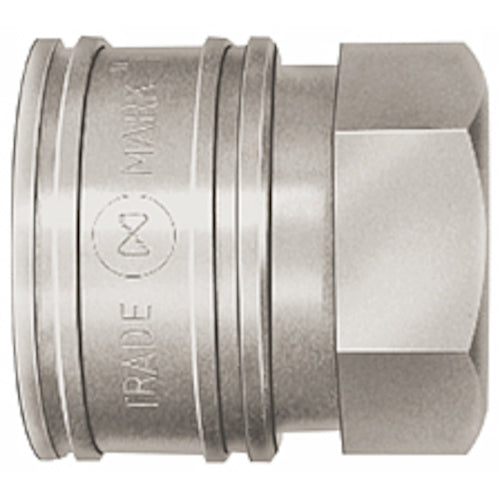

Nitto TSP coupler Stainless steel Fluorine rubber FKM X-100 (00752) 4TSF SUS FKM 1 piece

Catalog number: 4TSF SUS FKM Features: ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. ● Blade hoses can be attached without hose bands. (TPN type/TSN type) Specifications: ● Pressure resistance (MPa): 10 ● Fluids used: water, hydraulic oil, chemicals, air, gas ● Maximum operating pressure (MPa): 7.5 ● Counterpart mounting size: R1/2 ● Counterpart mounting screw size: R 1/2 ● Operating temperature range: -20 to 180°C ● Valve structure: double-way open type ● Valveless structure is suitable for highly viscous fluids. ● A wide variety of body materials, sizes, and mounting shapes. ● Blade hose mounting is also available. Material/Finish: Body: Stainless steel Sealing rubber: Fluorine rubber (FKMX-100) Note: For applicable fluids for hose attachment types, please also take into consideration the specifications of the attachment hose.
