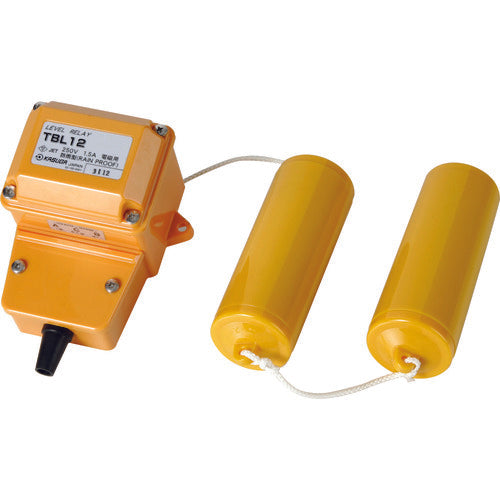

Kasuga Electric Nissui Liquid Level Relay TBL12 TBL12 1 piece

Catalogue number: TBL12 Features: ●Upper and lower limit control of liquid level is possible with one unit. ●The control range is set by the length of the hanging cord. ●Set includes main unit, two weights, and hanging cord. ●Complies with the Electrical Appliance and Material Safety Act. Applications: ●Liquid level control of seawater, sewage, etc. Specifications: ●Main unit total length x width x height (mm): 148 x 105 x 83 ●Applicable liquid specific gravity: 0.85 to 1.05 ●Rating: AC250V-1.5A, DC24V-3A ●Protection structure: IP33 (JIS C 0920) Material/Finish: ●Main unit: Polycarbonate ●Weight: Rigid polyvinyl chloride ●Hanging cord (3m): Tetron
