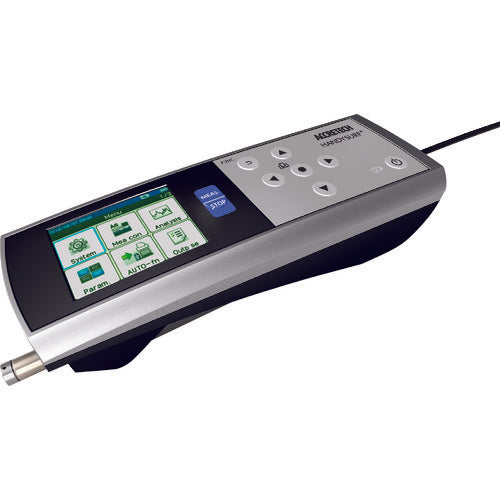

Tokyo Seimitsu Portable Surface Roughness Measuring Instrument Handysurf Plus 40 (2 microns) HANDYSURF PLUS40-2 1 unit

Catalog number: HANDYSURF PLUS40-2 Features: ●Retractable type reduces damage to the stylus. ●Display can be switched between 20 languages. ●Supports high resolution and wide measurement range. ●Excellent operability with 2.4-inch color LCD. ●Fully equipped analysis functions allow you to check waveforms and parameters even on-site. Specifications: ● Measurement speed (mm/s): 0.5/0.6/0.75/1.0 ● X-axis (mm): 16 ● Pickup: Select E-DT-SM10A or E-DT-SM49B ● Power supply (V): AC100 ● X-direction (mm): 16 ● Evaluation length (mm): 0.2 to 16 ● Measurement range (μm)/resolution (μm): -210 to +160/0.0007 ● Straightness accuracy (μm/mm): 0.5/16 ● Probe (μm): 2 ● Power supply: AC100 to 240 V ±10%, 50/60 Hz single phase ● Power consumption: 10 W ● Probe: 2 μm Set contents/accessories: ● Standard accessories: Standard piece, calibration stand, HANDYSURF+ dedicated carrying case, inspection report creation program SupportWare2. ●Optional accessories: small printer, various pickups, various nose pieces, offline analysis program (ACCTee), magnetic stand, etc.
