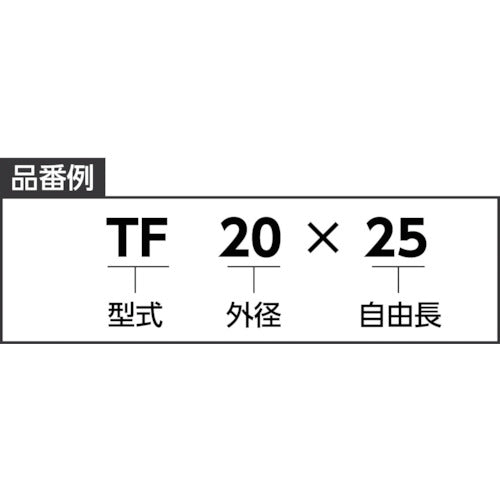

Catalog number: TM10X40 Features: ●A wide lineup has been achieved, making springs standardized as mold parts. ●Used by a wide range of users as machine parts, in addition to the mold industry. Applications: ●Press molds ●Clutch and brake parts ●Precision machine parts ●Machine tool parts ●Seismic isolation parts Specifications: ●Outer diameter (mm): 10 ●Inner diameter (mm): 5.0 ●Free length (mm): 40 ●Spring constant (N/mm): 15.32 ●Maximum deflection (mm): 12.8 ●Maximum load (N): 196.1 ●Rust prevention treatment: Electrochemical coating ●Usage temperature: -30 to 150°C Material/Finish: ●Silicon chrome steel for springs Caution: ●Do not use with deflection exceeding 32.0% of the free length.
