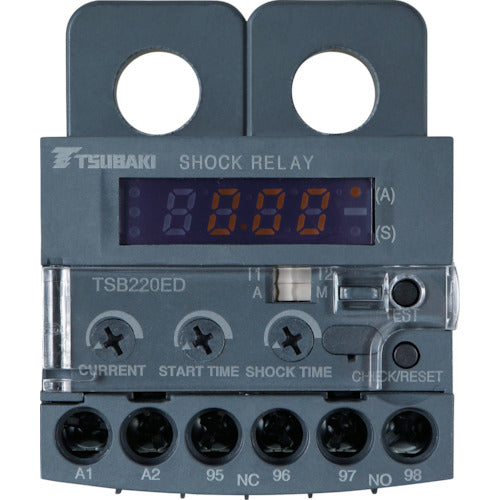

Tsubakimoto Chain Shock Relay ED Series TSB075ED 1 unit

Catalog number: TSB075ED Features: ● Current monitoring control device that quickly detects overcurrent when the motor is overloaded and prevents damage to the equipment. ● Motor current value and various setting values ​​during operation can be displayed digitally. ● Compact with integrated CT. Applications: ● Lifting equipment and conveyors. Specifications: ● Suitable motor capacity (kW) 200V class: 0.4/0.75 ● Suitable motor capacity (kW) 400V class: 1.5 ● Current setting range (A): 1.20 to 3.20/1.8 to 5.80 ● Contact configuration: 1a1b ● Contact rating: 3A, 250VAC (cosθ=1) ● Length (mm): 70.8 ● Width (mm): 60.2 ● Height (mm): 70.5 ● Current setting range T2 (A): 1.2 to 3.2●Current setting range T1 (A): 1.8 to 5.8●Detection current frequency: 20 to 200Hz●Maximum motor circuit voltage: AC600V 50/60Hz●Start time: 0.2 to 10.0 seconds (in 0.2 second increments), shock time: 0.2 to 5.0 seconds (in 0.2 second increments)●Power consumption: 2.0W or less●CT penetration number selection switch type (T1/T2)●UL/cUL certified product●CCC certified product
