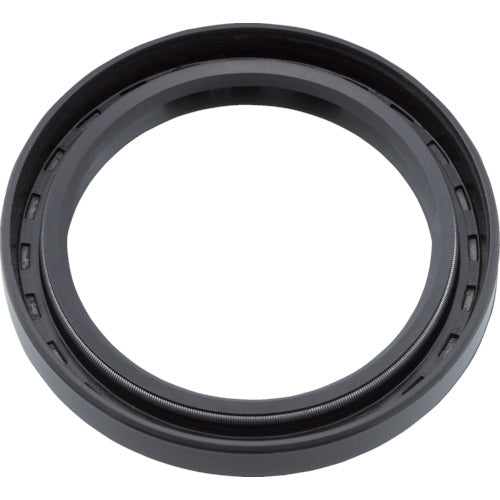

Musashi Oil Seal Shaft Diameter 170 Outer Diameter 200mm UE 170-200-16 1 pc

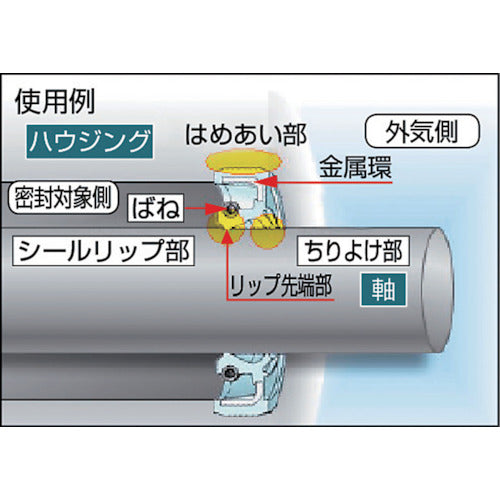

Catalogue number: UE 170-200-16 Features: ● Small size and easy installation and removal. ● Helps to reduce the size and weight of equipment. ● Used as a seal for rotating shafts when it is necessary to prevent foreign objects from entering from the outside. Applications: ● For general industrial machinery such as automobiles, agricultural machinery, and construction machinery. Specifications: ● Shaft diameter (mm): 170 ● Outer diameter (mm): 200 ● Thickness (mm): 16 ● Operating temperature range: -25 to 120°C (This is the applicable temperature of the rubber itself. The heat resistance temperature during use should be 20 to 30°C lower.) ● Pressure: 0 to 0.03 MPa Material/Finish: ● Rubber: Nitrile rubber (NBR) ● Spring: Hard-drawn steel wire ● Metal ring: Cold-rolled steel plate
