Mizumoto Stainless Steel Pipe Turnbuckle A&A Twist Diameter 2 Minutes TBP-6A 1 Piece

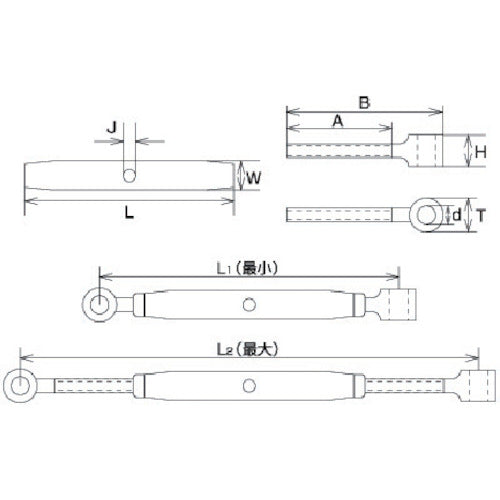

Catalogue number: TBP-6A Features: ●You can loosen or tighten by rotating the frame. ●Unlike the frame type, this is a pipe type with no exposed threads, making it more decorative. Applications: ●For adjusting the tension of wire ropes. Specifications: ●Working load (kN): 1.96 ●Thread diameter: W1/4 ●L (mm): 100 ●A (mm): 50 ●W (mm): 13 ●B (mm): 70 ●d (mm): 8.4 ●L1 (mm): 130 ●H (mm): 15 ●L2 (mm): 200 ●T (mm): 16 ●J (mm): 5 Material/Finish: ●Material: Stainless steel (SUS304) ●Finish: Barrel polishing finish
