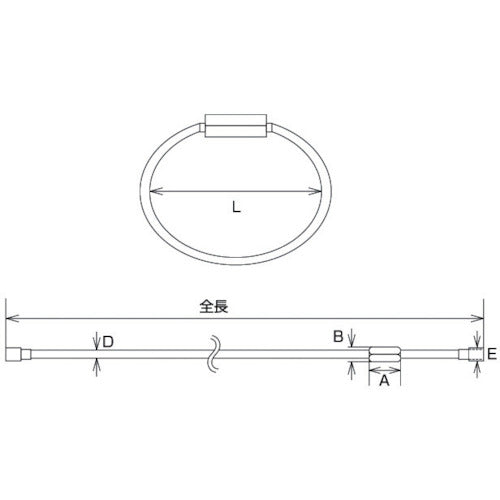

Catalog number: CW-3060 Features: ● Align both ends and tighten the screws to close. Applications: ● As a connecting fitting for chains, wires, ropes, etc., and as a joint for terminal fittings. Specifications: ● Total length (mm): 195 ● D (mm): 3 ● B (mm): 8 ● A (mm): 22 ● L (mm): 60 ● E (mm): 6 ● Working load (kN): 0.78 Material/Finish: ● Material: Stainless steel (SUS304) ● Finish: Barrel polishing finish
