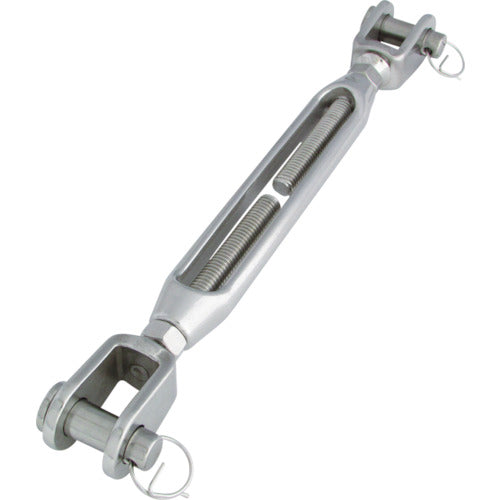

Mizumoto Stainless Steel Frame Turnbuckle 2.5mm B-1737 1 pc
Mizumoto Stainless Steel Frame Turnbuckle 2.5mm B-1737 1 pc
Regular price
¥3,268
Regular price
Sale price
¥3,268
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

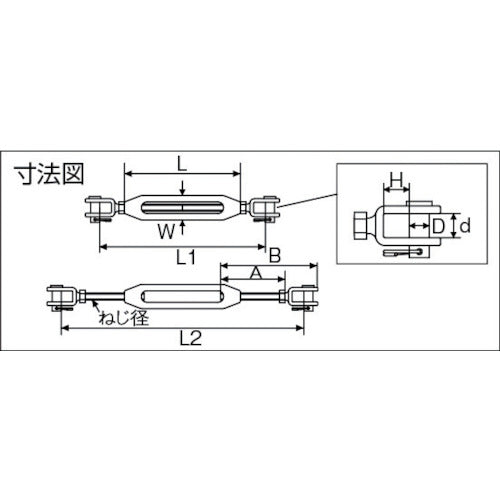

Catalogue number: B-1737 Features: ●Rotating the frame allows for loosening or tightening. ●Can be easily attached to an object by removing the ring. Applications: ●For adjusting the tension of wire ropes. Specifications: ●Working load (kN): 2.45 ●Thread diameter: W5/16 ●L(mm): 120 ●A(mm): 62 ●W(mm): 21 ●B(mm): 100 ●d(mm): 12 ●D(mm): 10 ●L1(mm): 179 ●H(mm): 13 ●L2(mm): 250 Material/Finish: ●Stainless steel (SUS304) ●Finish: Barrel polishing finish
