Mizumoto Stainless Steel U-Bolt Type A, Inner Width 30mm U-81040 1 pc

Mizumoto Stainless Steel U-Bolt Type A, Inner Width 30mm U-81040 1 pc

JAN：4982970101238 　
Architectural hardware Hardware and building materials Loading fittings Mizumoto Handling Fittings U-bolt
¥1,757
¥1,757
Sale Sold out
Shipping calculated at checkout.

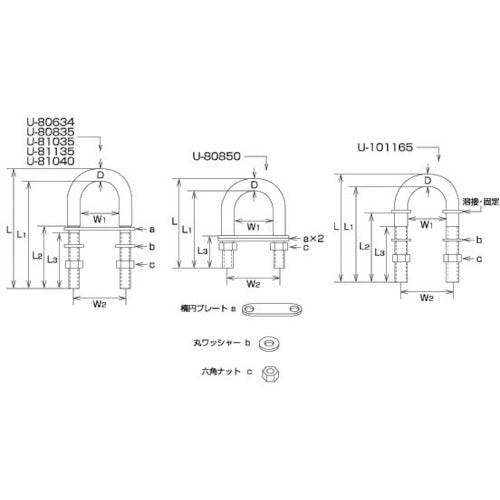

Catalog number: U-81040 Features: ●Fixing bracket for walls, floors, and the ground. Applications: ●As a terminal bracket for chains and ropes. Specifications: ●Working load (kN): 0.78 ●Thread diameter: M8 ●D (mm): 10 ●L (mm): 100 ●L1 (mm): 90 ●L2 (mm): 50 ●L3 (mm): 40 ●W1 (mm): 30 ●W2 (mm): 40 Material/Finish: ●Material: Stainless steel (SUS304) ●Finish: Barrel polishing finish Set contents/Accessories: ●Includes 1 oval plate, 2 round washers, and 2 hex nuts
