Mizumoto Wire Rope Display Parts Stainless Steel Slide Pulley Rope Diameter Up to 7mm B-1906 1 pc

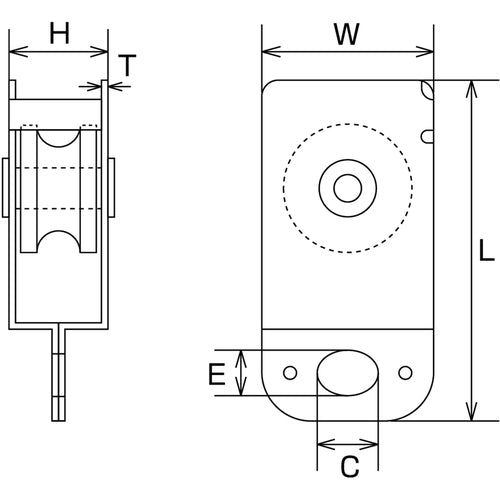

Catalog number: B-1906 Features: ● A pulley can be attached to the wire rope and the wheels can be slid to move it. ● Can be used with ropes up to a maximum diameter of 7 mm. Applications: ● For retractable tents, indoor nets and curtains. Specifications: ● Suitable rope diameter (mm): up to 7 ● Load capacity (kN): 0.29 ● L (mm): 54 ● C (mm): 9 ● W (mm): 26 ● H (mm): 15 ● E (mm): 7 ● T (mm): 1.5 ● Wheel diameter (mm): 20 ● Wheel groove width (mm): 7 ● Sheave material: Plastic Material/Finish: ● Frame: Stainless steel (SUS304) ● Sheave: Plastic (Polyacetal)
