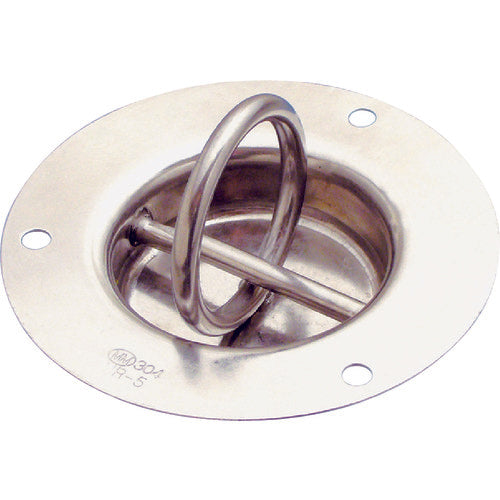

Mizumoto Hanging Hardware (Screw Type) Stainless Steel Recessed Ring Hook Diameter 70mm B-2171 1 pc
Mizumoto Hanging Hardware (Screw Type) Stainless Steel Recessed Ring Hook Diameter 70mm B-2171 1 pc
Regular price
¥2,120
Regular price
Sale price
¥2,120
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

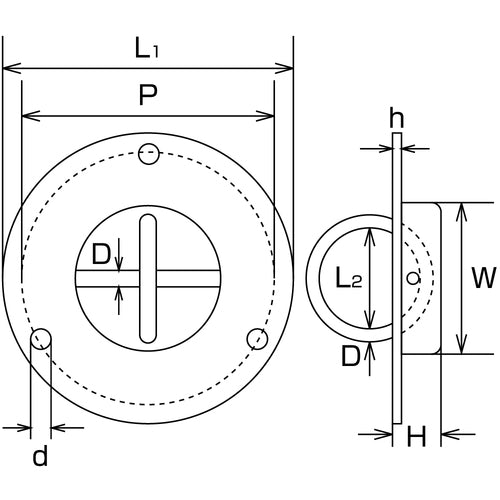

Catalog number: B-2171 Features: ●Since it is a recessed type, there are no protrusions that get in the way of the installation surface. ●The ring part is raised only when you want to use it, and when not in use, it fits into the recessed part so it doesn't get in the way. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Working load (kN): 0.07 ●D (mm): 3 ●H (mm): 10.5 ●L1 (mm): 70 ●L2 (mm): 25 ●P (mm): 60 ●W (mm): 37 ●d (mm): 4.2 ●h (mm): 0.8 Material/Finish: ●Stainless steel (SUS304)
