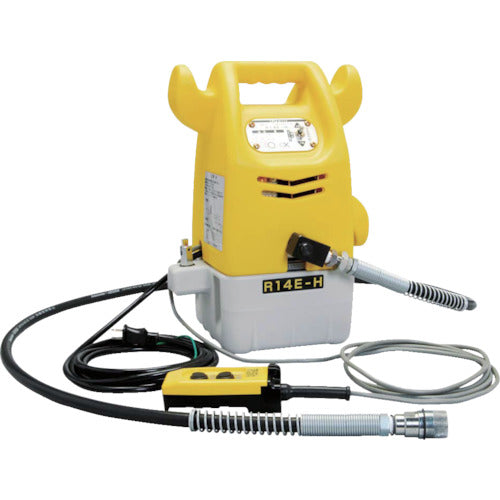

Izumi Electric Remote Control Hydraulic Pump R14E-H 1 unit

Catalog number: R14E-H Features: * When the specified pressure is reached, the motor stops to prevent poor crimping. * Pressure regulation is a double safety measure. * Can be used for crimping, compression, benders, etc. Specifications: ● Set pressure (MPa) high pressure: 68.5 ● Set pressure (MPa) low pressure: 2 ● Discharge volume (L/min) high pressure: 0.3 ● Discharge volume (L/min) low pressure: 2.9 ● Power supply (V): Single phase 100 ● Power cord length (m): 3 ● Tank capacity (L): 2 ● Width (mm): 306 ● Depth (mm): 205 ● Height (mm): 393 ● Power supply: Single phase 100V ● Width x Depth x Height: 306 x 205 x 393mm ● Tank oil volume: 2L ● Comes with 2m hose (mounting coupler diameter: 3/8) ● Compatible tools: Crimp terminal tool-No. 12A, No. 12H, compression terminal tool-No. 16B, EP-520C, EP-1000A ● JIS9711 compliant ● Resin body ● Can be replaced with a hose up to 10m long by separate order ● Power cord length: 3m ● Remote control cord length: 3m Material/Finish: Oil tank, cover: Resin Set contents/Accessories: Hose: 2m
