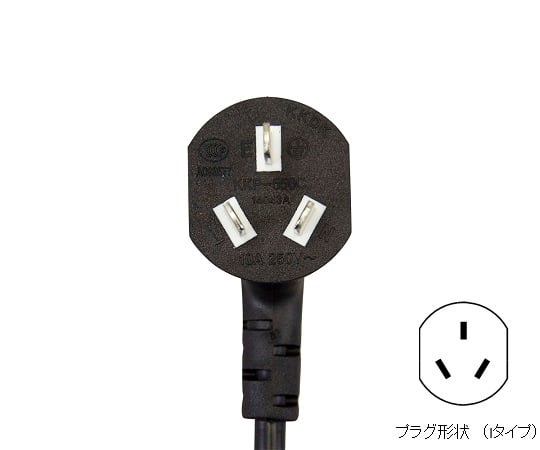

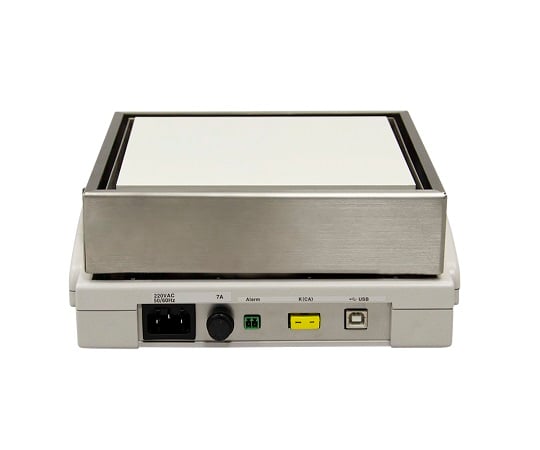

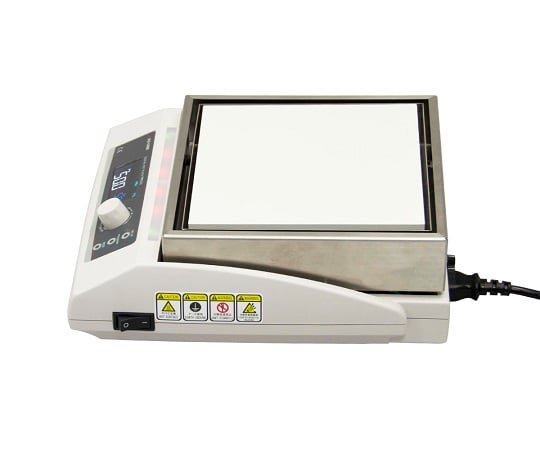

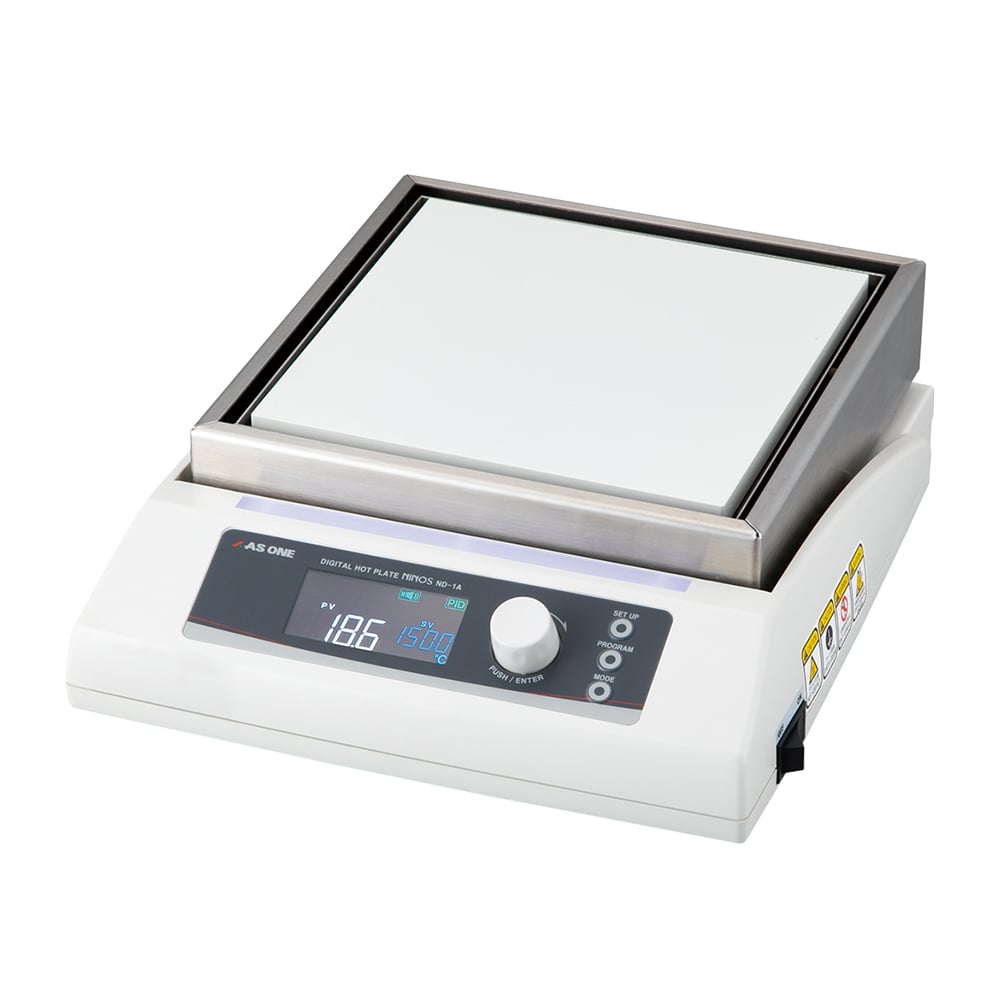

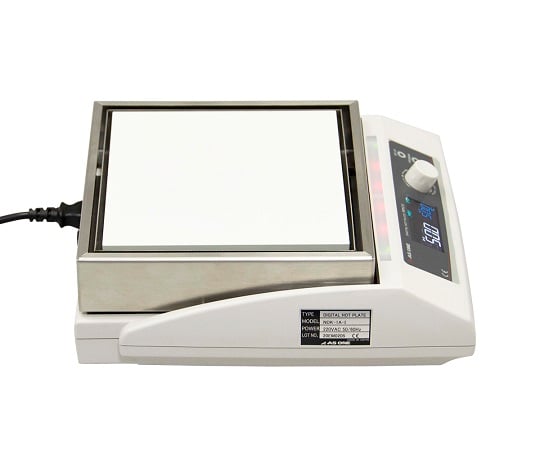

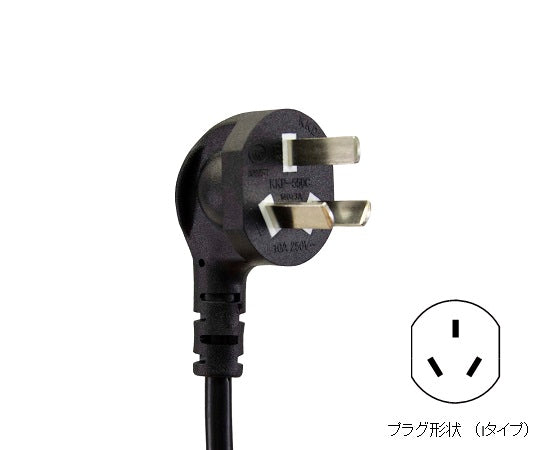

■Overseas specification Hot plate (NINOS) 350℃ 170×170mm (AC220V plug type: I) NDK-1A-I 1 piece

By using microcomputer PID control, high-precision temperature control is possible. The display uses an LCD screen with excellent visibility. It comes standard with four types of timer functions (ON, OFF, ON/OFF, SET), and the program function allows you to input temperature and time in up to 8 steps. Dedicated software (CD-ROM) and communication cable (optional) for data recording and communication make it easy to manage data on a PC. The sample temperature can be directly controlled by using an external temperature sensor (optional). An alarm signal output is standard equipment, making it possible to stop other equipment or start up a backup system in the event of an abnormality. A safety lamp is installed between the operation panel on the front of the main unit and the hot plate section (it stays lit until the top plate temperature drops below 55°C). The safety device uses a double lock mechanism consisting of two independent circuits. It takes about 30 minutes to heat up to the maximum temperature. The temperature distribution range of the top plate is highly accurate at 4°C (when set at 200°C). Maximum temperature (°C): 350 Plate size (mm): 170 x 170 Temperature setting range: Room temperature +10 to 350°C Temperature setting: Digital input type Temperature distribution width: 4°C (The temperature distribution width is a reference value when the indoor environment is 25°C (windless, no load, using the internal sensor) and the temperature is set to 200°C.) Temperature control method: Microcomputer PID control method, ON/OFF control method Temperature display method: LCD digital display (simultaneous display of setting/measurement temperature, heater output bar graph display) Internal temperature sensor: K thermocouple Safety devices: Self-diagnosis function (detection of upper and lower temperature limits, heater abnormality detection, sensor abnormality detection), abnormal heating prevention device (thermostat), overcurrent fuse Heater capacity: 680W Additional Features Timer function: Setting range: 1 minute to 99 hours 59 minutes (in 1 minute increments) Program function: Number of steps/Maximum 8 steps, Number of repeats/Maximum 9999 times Setting resolution/temperature 0.1℃/time 1 minute Communication function: PC output (USB) External temperature sensor support Upper and lower temperature limit alarm Alarm Signal Output Setting value memory function Key lock function Auto-tuning function Tabletop material: Aluminum (ceramic coating) Compatible OS: Windows (R) XP/SP3/Vista (R)/7/8/10 (32/64bit) Size: 240 x 280 x 101 mm Power supply: AC220V 50/60Hz Plug type: I type Power cord length: Approx. 1.8m ? Click here to download the dedicated application (1.0.0.60) Compatible OS: Windows(R)XP/SP3/Vista(R)/7/8/10(32/64bit) RoHS2 (EU)2015/863 compliant [About RoHS]
