The ultra-insulated structure provides excellent temperature stability.

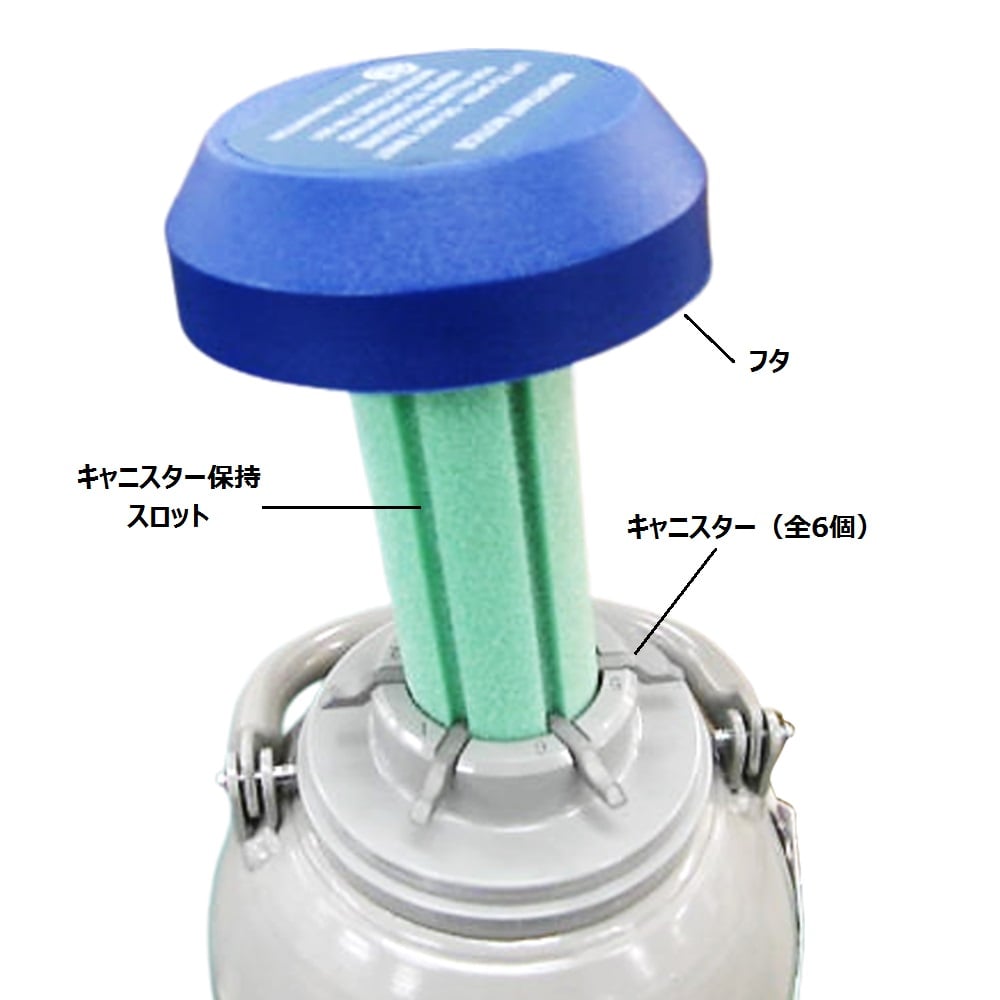

The center of the inlet protects the canister and prevents evaporation of liquid nitrogen to the maximum extent possible. Body diameter x height / neck inner diameter (mm): φ290 x 597 / φ51
Material: Aluminum
Liquid nitrogen storage capacity: Approx. 10L
Liquid nitrogen storage period: Approximately 100 days
Liquid nitrogen evaporation rate: approx. 0.1L/day
Canister storage capacity: 6
Canister dimensions (diameter x height): φ38 x 279 mm
Vial storage capacity: 150 (1.2 and 2.0mL vials, 5 per cane), 180 (1.2 and 2.0mL vials, 6 per cane), 750 (0.5mL straw bulk, 1 tier)
Weight: Empty (excluding canister) / 7.5kg, Full (excluding canister) / 15.6kg
RoHS2 (EU)2015/863 compliant [About RoHS]
