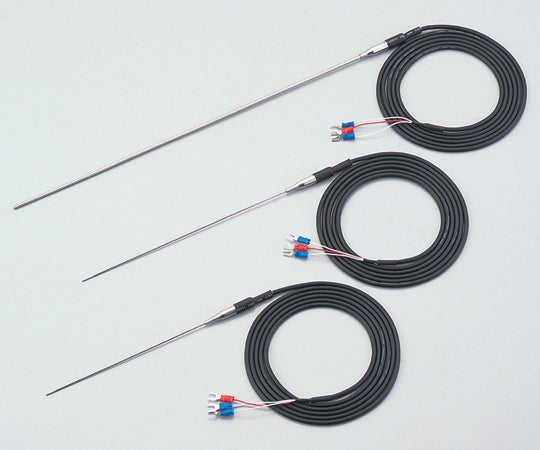

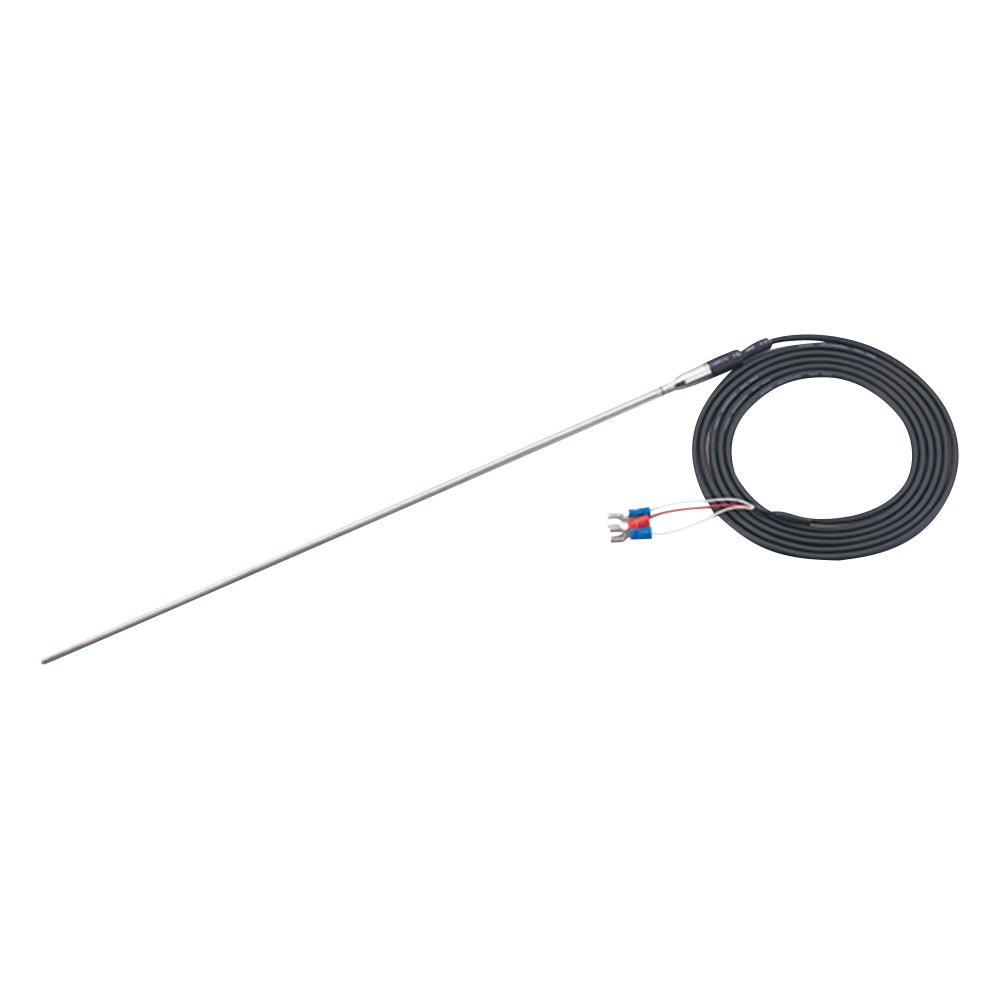

Resistance temperature detector (sheathed type) Class B 3-wire TPT-32350H 1 piece
Resistance temperature detector (sheathed type) Class B 3-wire TPT-32350H 1 piece
Regular price
¥15,730
Regular price
Sale price
¥15,730
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is a platinum thermocouple that is less susceptible to deterioration.
We have a wide lineup. Element: Platinum resistance thermometer (Pt100) Class B 3-wire type
Temperature range: 0 to 500°C
Sheath size: φ3.2×350mm
Lead wire coating material: Vinyl shield (VLS)
Lead wire length: 2m
Heat resistance: Sleeve: 80℃, Lead wire: 90℃
Lead wire end: M4Y terminal
Material: Sheath: Stainless steel (SUS316), Sleeve: Stainless steel (SUS304)
Sheath Type
Model number: TPT-32350H
