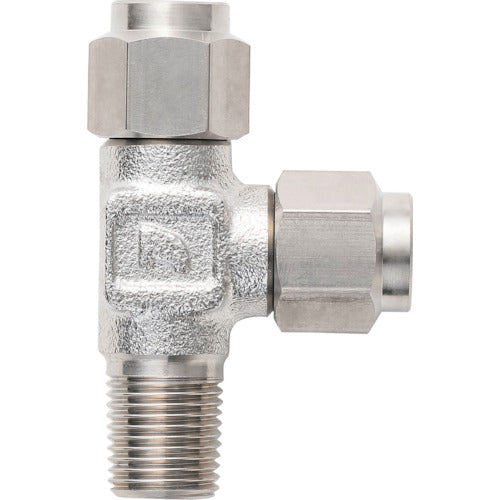

Junkosha Stainless Steel Fitting Service Tape 4x2.5mm PT1/4 TB-4X2.5-PT1/4-SUS 1 pc

Catalog number: TB-4X2.5-PT1/4-SUS Features: ● Made of highly corrosion-resistant SUS316. ● Can be used over a wide temperature range from low to high. ● Dedicated fittings optimally designed for each tube material can be selected. ● The tube will not run out of torque due to over-tightening the cap nut. ● There will be no abnormalities in the connection until the tube bursts. ● There is no need to manage the tightening torque of the cap nut. Applications: ● For piping of corrosive fluids ● For hydraulic piping ● For rust-proof piping Specifications: ● Compatible tube outer diameter D (mm): 4 ● Connection port size: PT1/4 ● Hexagonal side (mm): 17 ● Operating temperature range (℃): -65 to 180 (air), 0 to 180 (water), -65 to 180 (corrosive fluid) ● Fluid used: air, water, corrosive fluid ● Fluid temperature (℃): -65 to 180℃ (air), 0 to 180℃ (water), -65 to 180℃ (corrosive fluid) ● Compatible tube inner diameter (mm): 2.5 ● Hexagonal side (m m) Body: 17 ●Hexagonal facets (mm) Mounting nut: 10 ●Fluid temperature (℃): -65 to 180°C (air), 0 to 180°C (water), -65 to 180°C (corrosive fluid) ●Maximum operating pressure: Complies with maximum operating pressure of tube ●Maximum operating vacuum pressure: 0.014 kPa or more ●Compatible tubes: Multi-layer tubes AP1, AP4, fluorine tubes TA, TF, nylon tubes AS1, AS4 (air and water only) Material/Finish: ●Stainless steel (SUS316) Note: ●If the operating temperature range of the tube is within the operating temperature range of the fitting, take priority over the operating temperature range of the tube.
