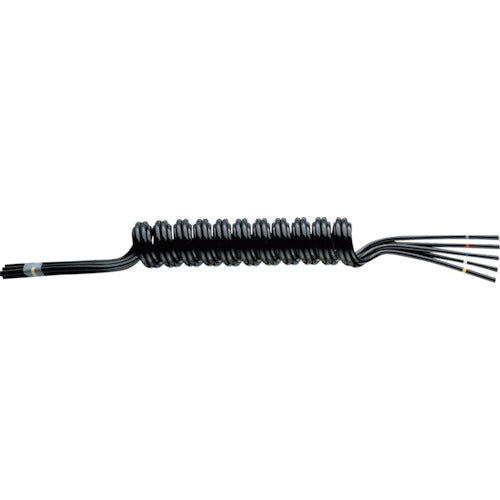

Junkosha Round Coil Tube UT 1-6X4mm Black UT-06-150 1 piece

Catalog number: UT-06-150 Features: ●Polyurethane tube processed into a coil shape. ●Ideal for centralized piping of telescopic parts. ●Excellent mechanical strength, especially abrasion resistance. ●Flexible and also has high resilience. ●Standard color: Black Applications: ●For piping of moving parts and telescopic parts of equipment ●For industrial robots ●For air tools Specifications: ● Coil diameter (mm): 42 ● Color: Black ● Hose inner diameter x outer diameter (mm): 4 x 6 ● Usage range (m): 1.5 ● Total length (mm): 400 ● Coil length (mm): 140 ● Maximum usage dimension (m): 1.5 ● Outer diameter (mm): 6 ● Inner diameter (mm): 4 ● Maximum operating pressure (MPa): 0.6 ● Operating temperature range (℃): -20 to 60 (air), 0 to 50 (water) ● Fluid used: air, water ● Number of cores: 1 ● Operating temperature range: -20 to +60℃ (air), 0 to +50℃ (water) ● Maximum operating pressure: 0.6MPa (at 23℃) ● Applicable fittings: One-touch fittings M series (fluid used: air), one-touch fittings W series (fluid used: air), brass fittings (fluid used: air, water), handy touch fittings (fluid used: air, water), stainless steel fittings US2 (fluid used: air, water) Material/Finish: ●Water-resistant soft polyurethane Caution: ●When running tap water through the pipe, residual chlorine may cause problems.
