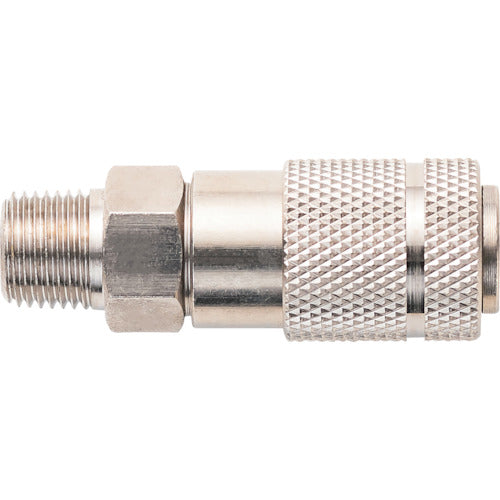

Junkosha One-touch coupling Ultra-small one-touch coupling Male socket - 1/8 MMS-M1/8 1 pc

Catalogue number: MMS-M1/8 Features: ●An ultra-compact one-touch coupling developed for plastic tubes. ●Simple structure that allows easy attachment and detachment with one touch. ●The sides of the plug and socket valve are sealed with an O-ring. ●Highly durable against repeated attachment and detachment, co-vibration and impact. ●Compact and robust, with good flowability. ●The socket side opens and closes automatically when attached or detached. Applications: ●For attaching and detaching piping for various pneumatic equipment. ●For attaching and detaching piping for various pneumatic tools. Specifications: ● Connection diameter: R1/8 ● Hexagonal side (mm): 12 ● Maximum operating pressure (MPa): 0.88 ● Operating temperature range (℃): 0 to +60 ● Operating pressure: 0.88 ● Operating fluid: Air ● Pressure resistance (MPa): 0.88 ● Counterpart mounting size: R1/8 ● Operating fluid: Air ● Fluid temperature: 0 to 60℃ ● Maximum operating pressure: 0.88MPa Material/Finish: ● Body (metal part): Brass (electroless nickel plating)
