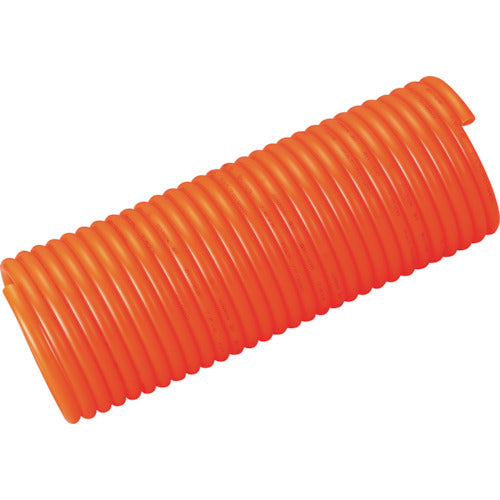

Junkosha Soft Nylon Coil Tube AT1 11X9X20 A Type Orange AT1-09-20A 1 Piece

Catalog number: AT1-09-20A Features: ●Excellent mechanical strength, especially pressure resistance, abrasion resistance, and flex fatigue resistance. ●Excellent heat and cold resistance (resin no-load continuous use temperature -40 to +93°C). ●Highly flexible. ●Excellent oil and chemical resistance (especially alkali resistance). ●No risk of toxic substances leaching. ●Lightweight and easy to work with. Uses: ● For oil and pneumatic equipment ● For centralized lubrication equipment ● For painting equipment ● For chemical plants ● For air tools such as air drivers and air hammers ● For piping of moving parts Specifications: ● Coil diameter (mm): 115 ● Color: Orange ● Hose inner diameter x outer diameter (mm): 9 x 11 ● Usage range (m): 14 ● Total length (mm): 760 ● Coil length (mm): 760 ● Maximum usage dimension (m): 14 ● Outer diameter (mm): 11 ● Inner diameter (mm): 9 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): -20 to 70 (air), 0 to 60 (water), -20 to 60 (oil) ● Fluid used: air, water, oil ● Number of cores: 1 ● Operating temperature range: -20 to +70℃ (air), 0 to +60℃ (water), -20 to +60℃ (oil) ● Maximum operating pressure: 1.0MPa (at 23℃) ● Applicable fittings: AT4 coil fittings Material/Finish: Soft nylon Note: Please inquire about other fluids.
