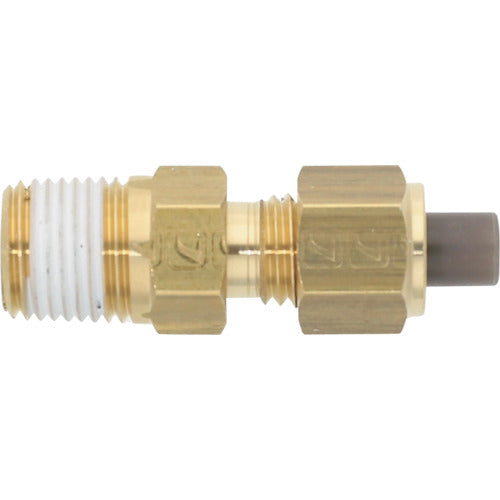

Junkosha Brass Fitting (Inch Series) Nipple 7.94 x 5.90 mm PT1/8 PN-5/16-PT1/8-BS 1 pc

Catalog number: PN-5/16-PT1/8-BS Features: ●The mechanism holds the tube insert and tightens it with a sleeve and a cap nut, so the connection is secure. ●The connection is designed to be normal until the tube breaks. ●Comes with colored screw seals for each R (PT) screw size. Applications: ● For pneumatic piping ● For hydraulic piping ● For hydraulic piping Specifications: ● Compatible tube outer diameter D (mm): 7.94 ● Hexagonal side (mm): 12 ● Connection size: PT1/8 ● Fluid used: air, water, oil, organic solvents ● Hexagonal side (mm) body: 12 ● Compatible tube inner diameter (mm): 5.9 ● Hexagonal side (mm) mounting nut: 14 ● Fluid temperature (℃): -20 to 60℃ (air), 0 to 60℃ (water), -20 to 60℃ (oil), -20 to 60℃ (organic solvents) ● Maximum operating pressure: Complies with the maximum operating pressure of the tube ● Vacuum pressure used: 0.014kPa or more (excluding US, when the fluid used is air) ● Applicable tubes (when the fluid used is air): Nylon tubes (AS1, AS2, AS4), Spot welding equipment tubes (SP4, SPF), Polyurethane tubes (US, UH, UF, UFL, UE, UC), Multilayer tubes ( AP1, AP4, UP1) ●Applicable tubes (when the fluid used is water): Nylon tubes (AS1, AS2, AS4), tubes for spot welding equipment (SP4, SPF), polyurethane tubes (UF, UFL), multi-layer tubes (AP1, AP4, UP1) ●Applicable tubes (when the fluid used is oil): Nylon tubes (AS1, AS2, AS4), multi-layer tubes (AP1, AP4, UP1) ●Applicable tubes (when the fluid used is organic solvents): Multi-layer tubes (AP1, AP4, UP1) Material/Finish: ●Brass Caution: ●Do not freeze. ●When using tubes other than those applicable, the outer diameter accuracy should be within ±0.1mm for nylon and ±0.15mm for urethane, and the roundness should be within 0.2mm (maximum outer diameter - minimum outer diameter).
