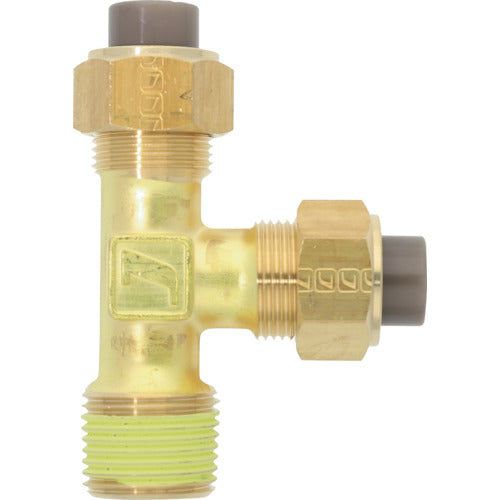

Junkosha Brass Fitting (Metric Series) Service Tape 12 x 8 mm PT3/8 PTB-12X8-PT3/8-BS 1 pc

Catalog number: PTB-12X8-PT3/8-BS Features: ●Brass fittings (metric series) comply with the Japanese Industrial Standard JIS B8381 "Pneumatic pipe fittings". ●Has a tube insert section and is tightened with a sleeve and cap nut, ensuring a secure connection. ●No abnormalities in the connection until the tube is broken. ●Comes with colored thread seals for each R (PT) thread size. Applications: ●For pneumatic piping ●For water pressure piping ●For hydraulic piping Specifications: ● Compatible tube outer diameter D (mm): 12 ● Connection diameter: PT3/8 ● Hexagonal side size (mm): 19 ● Operating temperature range (℃): -20 to 60 (air), 0 to 60 (water), -20 to 60 (oil), -20 to 60 (organic solvents) ● Fluids used: air, water, oil, organic solvents ● Fluid temperature (℃): -20 to 60℃ (air), 0 to 60℃ (water), -20 to 60℃ (oil), -20 to 60℃ (organic solvents) ● Compatible tube inner diameter (mm): 8 ● Hex Corner side (mm) body: 14 ● Hexagon side (mm) mounting nut: 19 ● Fluid temperature (℃): -20 to 60℃ (air), 0 to 60℃ (water), -20 to 60℃ (oil), -20 to 60℃ (organic solvent) ● Maximum operating pressure: Complies with maximum operating pressure of tube ● Vacuum pressure used: 0.014kPa or more (excluding US, when the fluid used is air) ● Applicable tube (when the fluid used is air): Nylon tube (AS1, AS2, AS4), Tubes for spot welding equipment (SP4, SPF), polyurethane tubes (US, UH, UF, UFL, UE, UC), multi-layer tubes (AP1, AP4, UP1) ●Applicable tubes (when the fluid used is water): nylon tubes (AS1, AS2, AS4), Tubes for spot welding equipment (SP4, SPF), polyurethane tubes (UF, UFL), multi-layer tubes (AP1, AP4, UP1) ●Applicable tubes (when the fluid used is oil): nylon tubes (AS1, AS2, AS4), multi-layer tubes (AP1, AP4, UP1) ●Applicable tubes (when the fluid used is organic solvents): multi-layer tubes (AP1, AP4, UP1) Material/Finish: ●Brass Caution: ●When the fluid used is air, it can be used up to +80°C. When the fluid used is water or oil, it can be used up to +70°C, but please use a metal sleeve sold separately. ●Do not freeze. ●If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1 mm for nylon and within ±0.15 mm for urethane, and with a roundness of within 0.2 mm (maximum outer diameter - minimum outer diameter).
