Specific low power transceiver (set of 2) NT-202M(H) 1 unit
Specific low power transceiver (set of 2) NT-202M(H) 1 unit
Regular price
¥14,080
Regular price
Sale price
¥14,080
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ultra compact. Everything about it makes an impact. It feels like it will change the landscape of the city.
It's not just small, it's also packed with surprising performance.

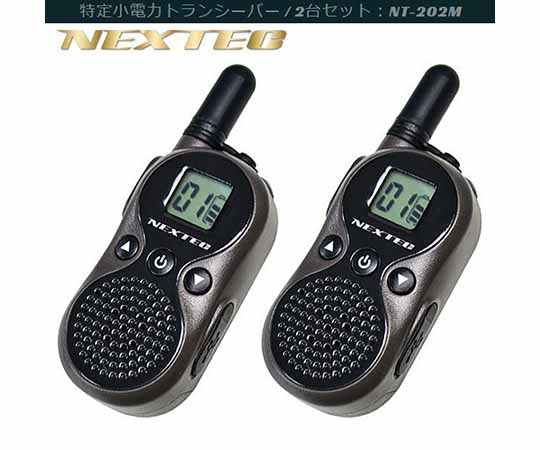

Introducing the new NT-202M, a pair of ultra-compact low-power transceivers.
Compliant with Ministry of Internal Affairs and Communications technical standards
No license or qualification required

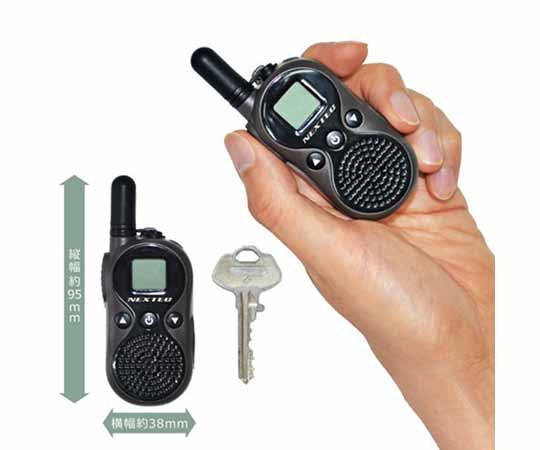

Incredibly small and lightweight
Weight: Approx. 48g (including batteries), Approx. 38mm (width) x 95mm (length) x 19mm (depth), excluding protrusions
Ready-to-use 2-unit set

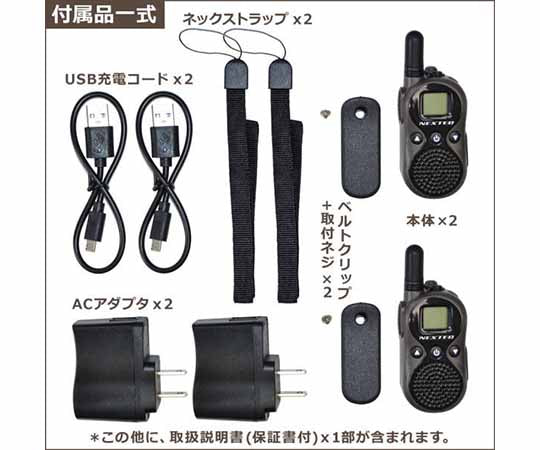

Comes with a neck strap, belt clip, two charging adapters, and two cables.
Supports USB charging
It can be charged from a power outlet or a computer, etc. It's easy to use.
Group mode included
Even if the same channel is used at the same time as other groups, only the same group can communicate.
Up to 18 hours of use
Charging time: Approx. 1.5 hours
* Measurement conditions: low-frequency output 200mW, 10 seconds of transmission, 10 seconds of reception, 80 seconds of standby (new and fully charged)
Earphone microphone also available
Main Specifications
NT-202M Rating
Power supply voltage DC3.7V (dedicated Li-Ion battery pack)
Transmitting and receiving frequency: 422.050MHz to 422.175MHz (11 waves at 12.5kHz intervals)
422.200MHz to 422.300MHz (9 waves at 12.5kHz interval)
Radio type F3E/F2D
Transmitting power: 10mW
Receive sensitivity: -8dB μV or less (12dB SINAD)
Low frequency output: 500mW or more
@Rated voltage 8Ω load 10% distortion
Usage time: Approximately 18 hours
When new and fully charged,
Low frequency output 200mW, repeating 10 seconds of transmission, 10 seconds of reception, and 80 seconds of standby
Temperature and humidity conditions during operation: -10℃ to 50℃ (no condensation)
External dimensions: Approx. 38 mm (width) x 95 mm (height) x 19 mm (depth), excluding protrusions
Weight: Approx. 48g (including batteries)
