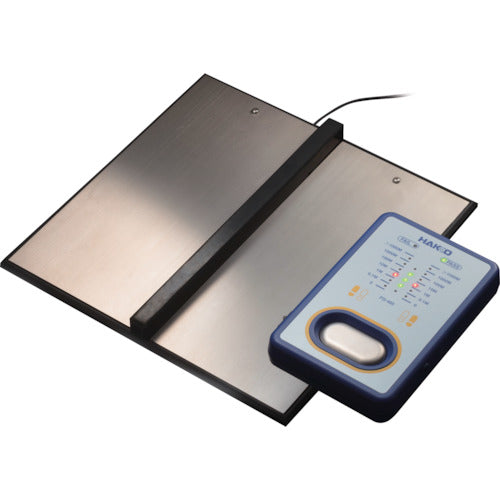

Catalog number: FG465-82 Features: *Complies with JIS T 8103:2010. Measures both feet simultaneously and displays the measurement results for each left and right foot. *Measurement results can be saved as data by downloading dedicated software. *ID management for the person taking the test is possible by using a barcode reader or card reader. *By linking with the wrist strap tester (FG-470), simultaneous measurement with footwear is possible. Applications: *For measuring various electrostatic and conductive shoes. ●Footwear tester Specifications: ●Measurement accuracy: ±5 to ±10% ●Width (mm): 120 ●Depth (mm): 185 ●Height (mm): 30 ●Measurement range: Upper limit judgment 1 x 10Ω [to the power of 7] to 10Ω [to the power of 9], lower limit judgment 1 x 10Ω [to the power of 5] to 10Ω [to the power of 6] ●External dimensions (mm): 35 x 25 x 50 ●Rating: DC24V 50mA ●Measurement voltage: DC20V ●Operating environment: 0 to 40°C 80%RH maximum (no condensation) Set contents/accessories: ●Test plate ●Mounting stand ●AC adapter ●Instruction manual ●Registration card (3-year warranty)
