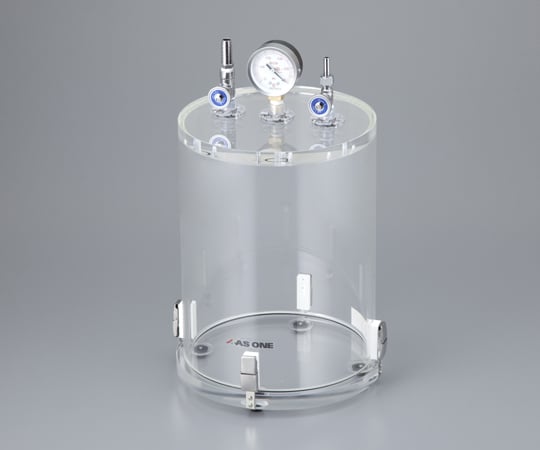

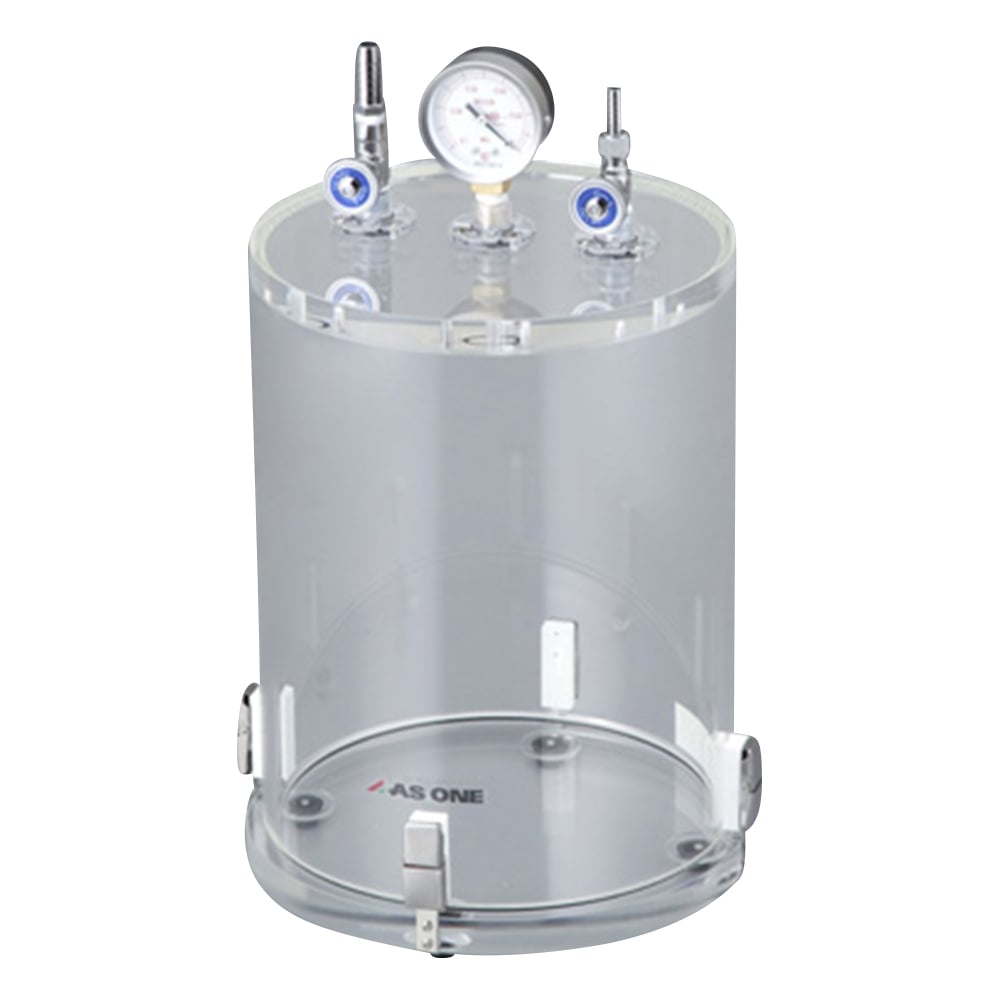

Vacuum plate VZ type 1 piece

Comes with a vacuum gauge that lets you see the vacuum level at a glance The vacuum valve has two ports with outer diameters of φ8mm and φ14mm. Body material: Body: transparent reinforced PMMA (acrylic) plate thickness 8mm, top and bottom plates: reinforced PMMA (acrylic) plate thickness 20mm, valve and vacuum gauge attachment part: PC (polycarbonate) Weight: 5.8kg Allowable vacuum level: approx. 133Pa Model number: VZ type External dimensions (mm): φ268×450 *including vacuum meter Inner dimensions (mm): φ234×298 Accessories: Vacuum valve: (small) outer diameter φ8mm x 1, (large) outer diameter φ14mm x 1, vacuum gauge x 1 Recommended vacuum pumps: (1-4148-11) Dry vacuum pump DTC-22, (1-671-06) Dry vacuum pump DA-20D
