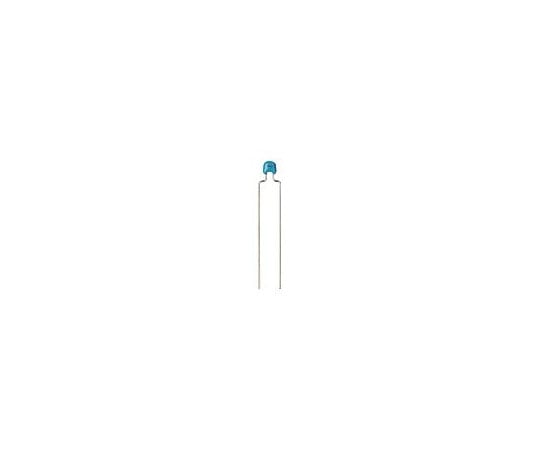

Multilayer ceramic capacitor, radial lead type, 50V, 0.1μF, RDER71H104K0K1H03B, 1 piece

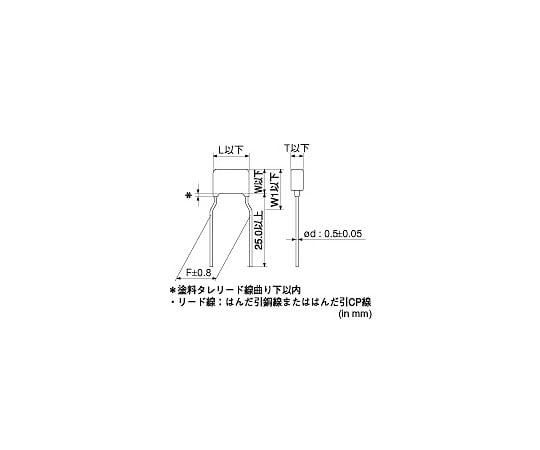

The RDE series is a multilayer ceramic capacitor manufactured by Murata Manufacturing, a leading Japanese manufacturer. It is considered to be the successor to the RPE type, which has long been a popular standard product. (The RCE is for automotive use.) Please note that ceramic capacitors have different temperature characteristics depending on the model number, even if they have the same appearance and capacity. Specifications Capacitance 0.10μF ±10% Rated voltage: 50Vdc Temperature characteristics (compliance standard) X7R (EIA) Capacitance change rate ±15% Temperature characteristics: Temperature range -55 to 125°C Operating temperature range: -55 to 125°C L dimension or outer diameter D4.0 mm or less W dimension 3.5 mm or less T dimension 2.5 mm or less Lead spacing F5.0 ±0.8mm Lead wire diameter d0.5 ±0.05mm W1 dimension 6.0mm
