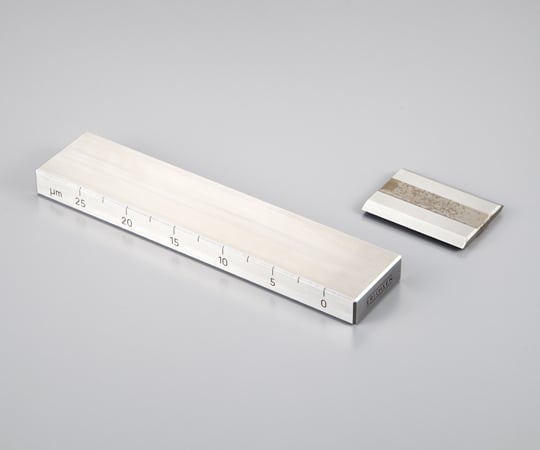

Grindometer 232/IV 1 piece

It can measure the particle size and dispersion of paints, inks, chemicals, etc. The sample is dropped into the double groove and scraped off with a scraper, and the position of the line that appears is read on the scale. Model number: 232/IV Measurement range (μm): 0 to 100 Material: Stainless steel Size: Main unit: 165 x 35 x 13 mm, Scraper: 50 x 38 x 5 mm Double groove: 12mm x 125mm x depth 0-100μm (tapered bottom) x 2 rows Weight: 620g Standards: ISO1524, ASTM D1210, JIS K5600 Accessories: scraper case Grind Meter
