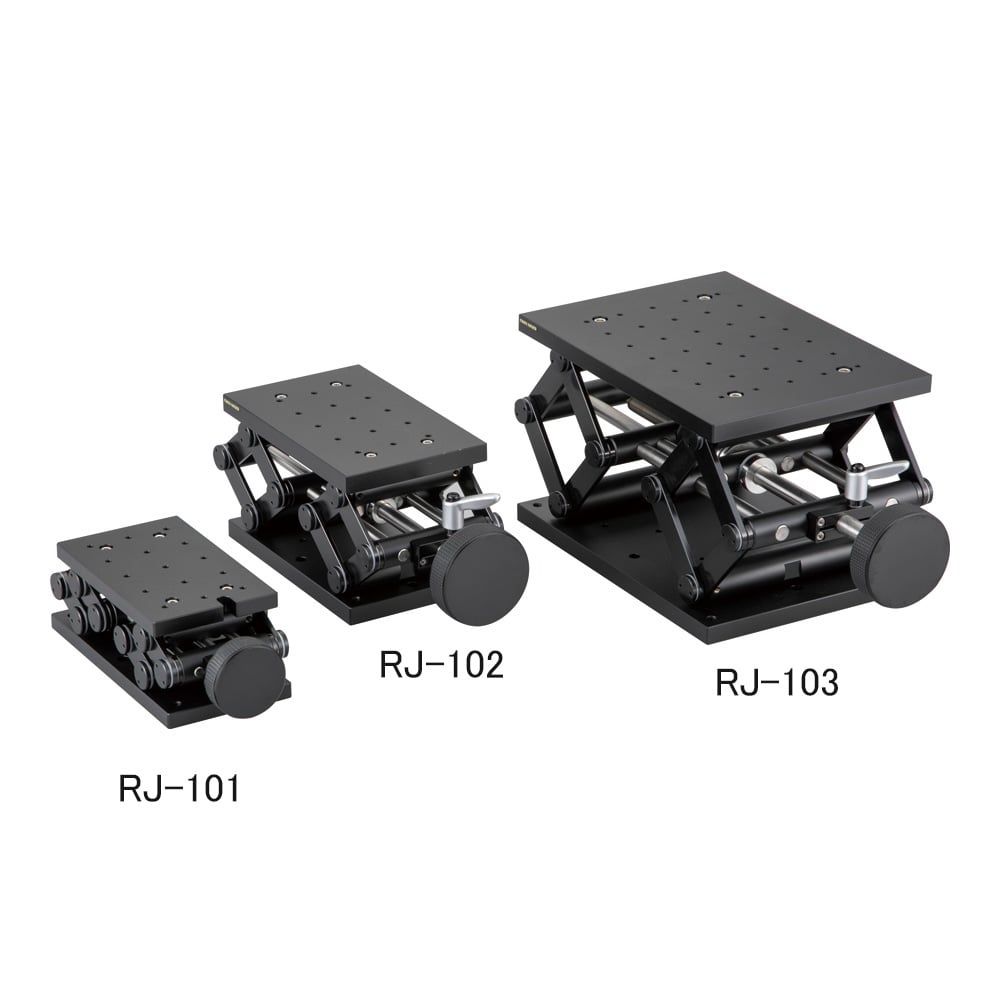

It can move up and down parallel to the Z-axis.
It uses a pantograph system, which allows the height of heavy objects to be adjusted by rotating the handle.
A tilt stage of the same size can be connected to the stage surface. Model number: RJ-102
Stage surface (mm): 100 x 160
Load capacity (kgf): 25 (245N)
- Travel (mm): 42
- Weight(kg):3.2
Material: Aluminum, brass (anodized, chrome plated, painted)
Parallelism accuracy: 0.1mm
