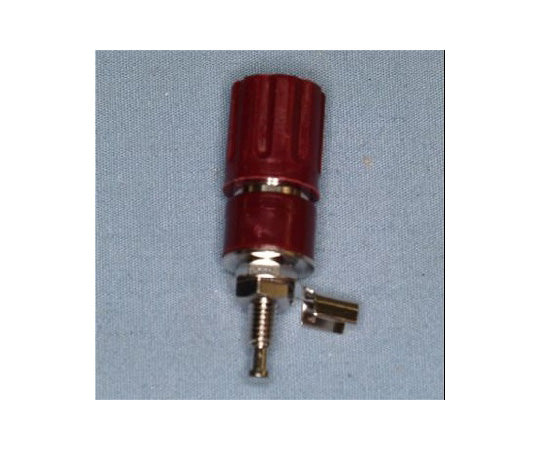

Insulated terminal red T-1-R 1 piece
Insulated terminal red T-1-R 1 piece
Regular price
¥781
Regular price
Sale price
¥781
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Number of pins: -
Connector type: Insulated terminal
Panel mounting method: Nut tightening
Lugs: Yes
Insertion hole: Yes
Knob removal: ×

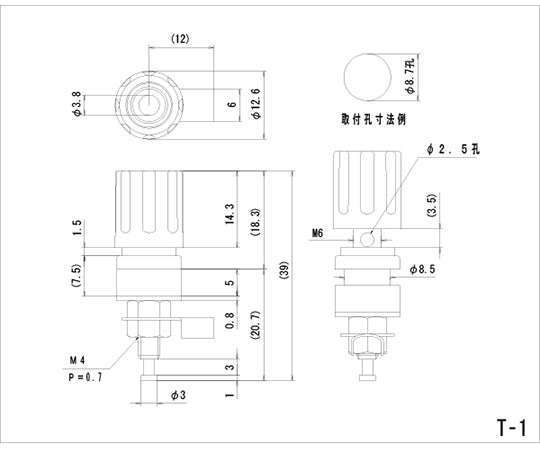

External dimensions: φ12.6
Body color: Red
Rating: 125V-10A
Withstand voltage: AC1000V (1 minute)
Insulation resistance: 100MΩ or more (DC500V)
Mounting plate thickness: 3.0mm (MAX)
Mounting thread pitch: -
