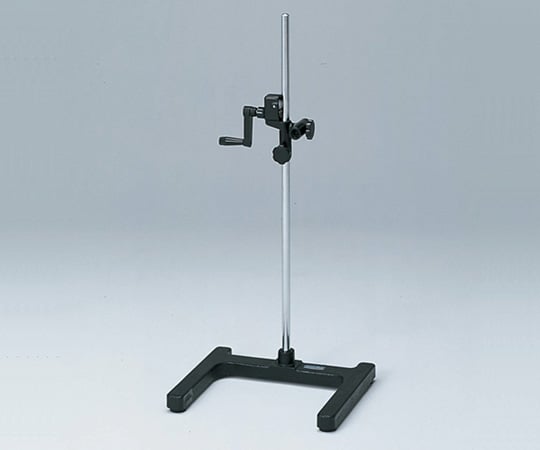

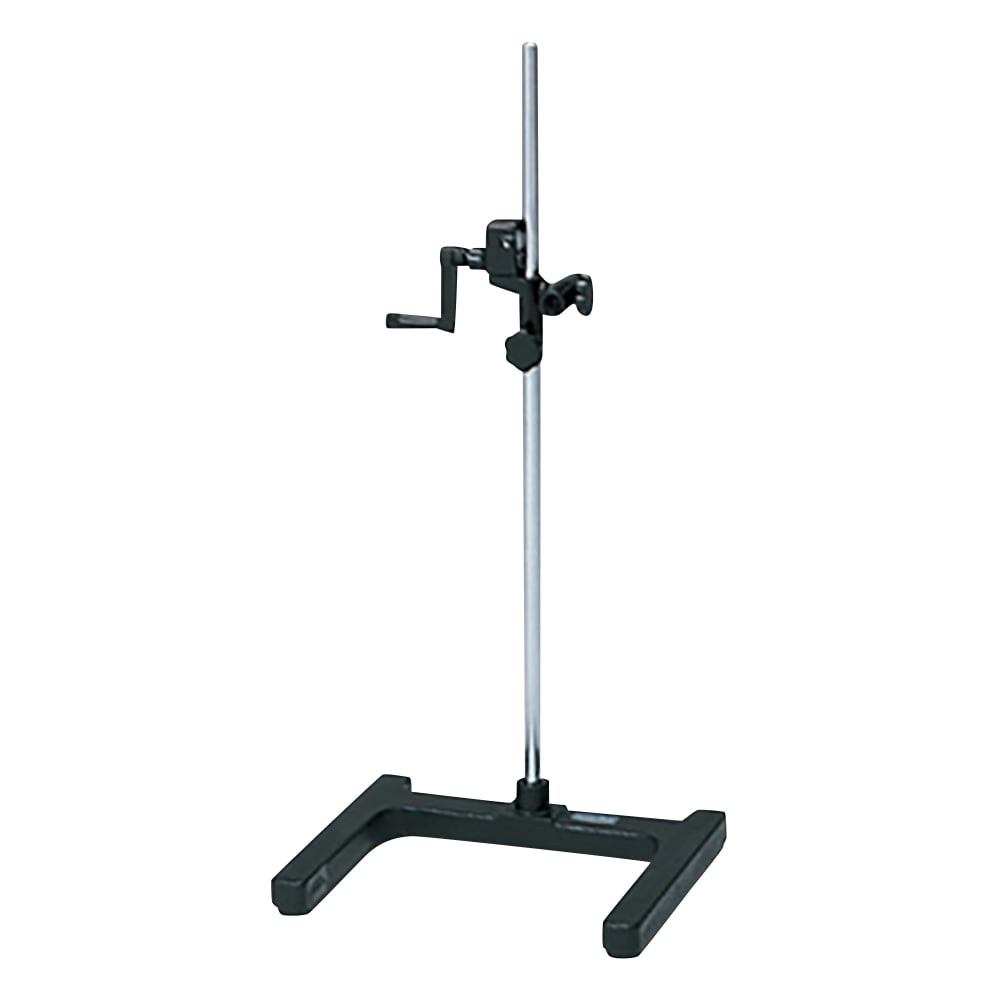

The height can be easily adjusted (approximately 7 mm per turn) by turning the handle.
The gear mechanism allows fine adjustment. Material: Base/cast iron (black paint finish), shaft/stainless steel (SUS304)
Gear up/down range: 400mm
Attachable shaft diameter: φ16mm
Shaft size: φ16×700mm
Base inner dimensions: 260 x 190 mm
Load capacity: 4.5kg
Weight: 6.5kg
Model number: AN type
Head attachment: Fixed
Base outer dimensions (mm): 330 x 270
*We also accept special orders for pillar lengths, so please contact us.
